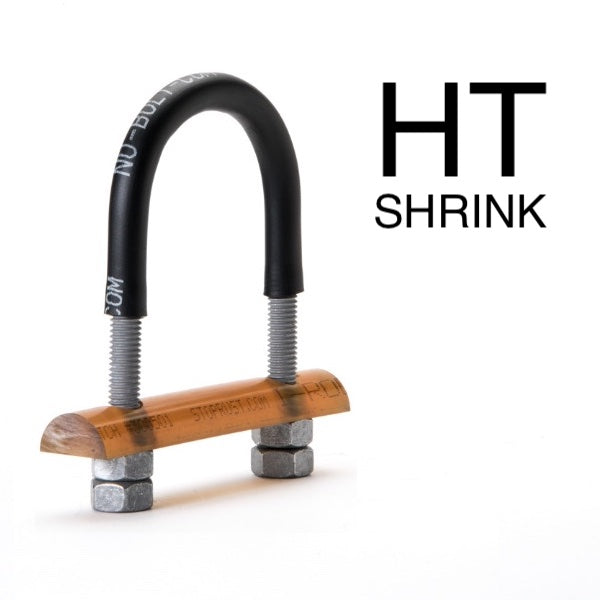

20 in Galvanized Nu-Bolt HT with I-Rod HT

Nu-Bolt HT (high-temp) assembly for 20 inch pipe with I-Rod HT pipe support material and 4 nuts, shipped unassembled.
- 1 x Hot Dip Galvanized U-Bolt ASTM A36 1-8 stock with HT Polyshrink™
- 1 x Half-round I-Rod HT support: cut and drilled
- 4 x HDG heavy hex nuts 1-8

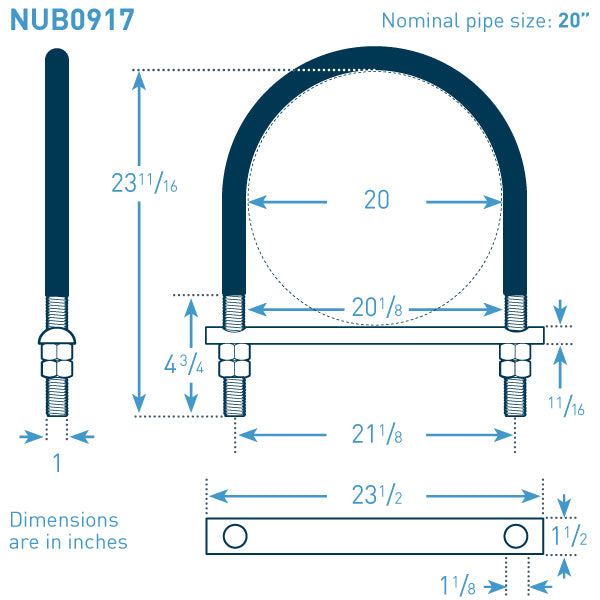

U-Bolt Size: 20 in NPS x 1 in bolt stock

Bolt Stock (in): 1 inch (1.00)

Bolt Coating: Hot Dip Galvanized

Polyshrink: High Temp (HT)

Gripping?: Gripping

I-Rod material: I-Rod HT (amber)

Temp: up to 340°F (171°C)

I-Rod Size: 1.50 in dia x 0.6875 in height

I-Rod length (in): 23.5
