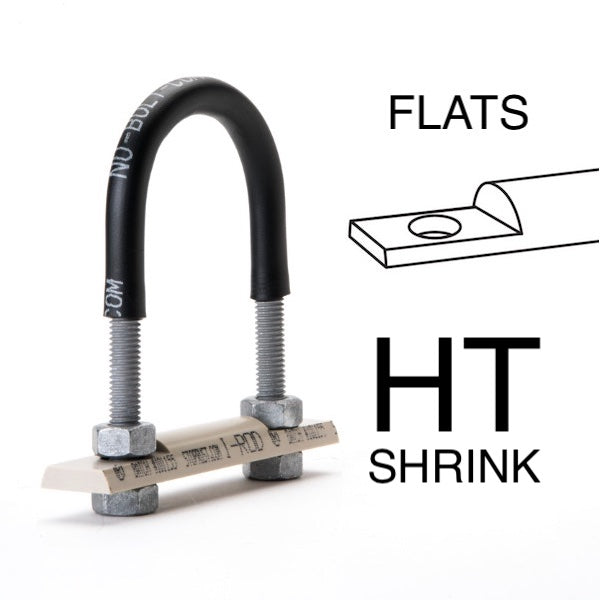

4 in Galvanized Nu-Bolt HT with Peek with Flats

Nu-Bolt HT (high-temp) assembly for 4 inch pipe with I-Rod PEEK pipe support material machined with Flats and 4 nuts, shipped unassembled.
- 1 x HDG U-Bolt ASTM A36 1/2-13 stock with HT Polyshrink™
- 1 x I-Rod PEEK support: cut and drilled, ends machined with Flats
- 4 x HDG heavy hex nuts 1/2-13

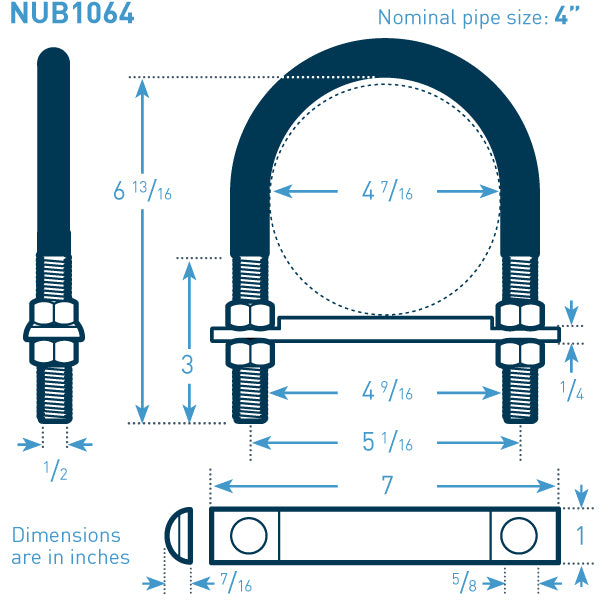

U-Bolt Size: 4 in NPS x 0.5 in bolt stock

Bolt Stock (in): 1/2 inch (0.50)

Bolt Coating: Hot Dip Galvanized

Polyshrink: High Temp (HT)

Gripping?: Gripping

I-Rod material: Peek (tan)

Temp: up to 480°F (249°C)

I-Rod Size: 1.00 in dia x 0.4375 in height

I-Rod length (in): 7.0
