6 in Galvanized Nu-Bolt with I-Rod HT with Flats

Nu-Bolt assembly for 6 inch pipe with I-Rod HT pipe support material machined with Flats and 4 nuts, shipped unassembled. (Imperial)
- 1 x HDG U-Bolt ASTM A36 5/8-11 stock with Polyshrink™

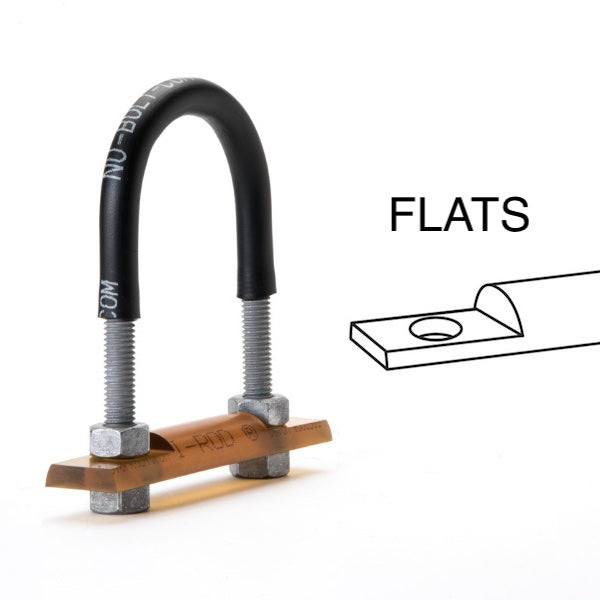

- 1 x I-Rod HT support: cut and drilled, ends machined with Flats
- 4 x HDG heavy hex nuts 5/8-11

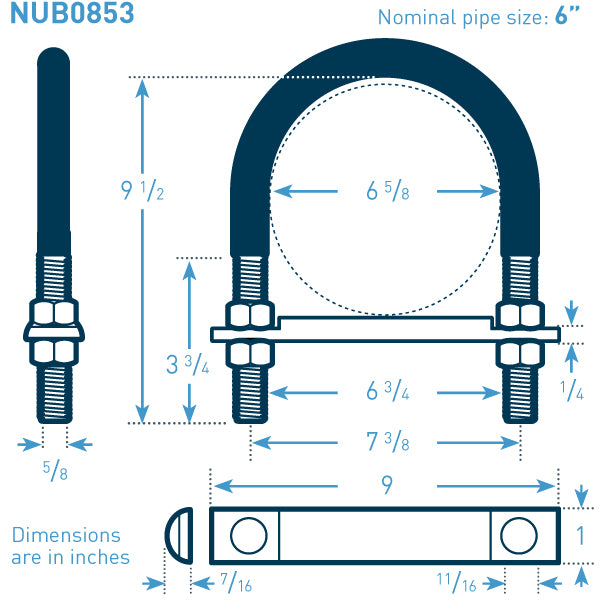

U-Bolt Size: 6 in NPS x 0.625 in bolt stock

Bolt Stock (in): 5/8 inch (0.625)

Bolt Coating: Hot Dip Galvanized

Polyshrink: Standard

Gripping?: Gripping

I-Rod material: I-Rod HT (amber)

Temp: up to 340°F (171°C)

I-Rod Size: 1.00 in dia x 0.4375 in height

I-Rod length (in): 9.0
