2 in Galvanized Nu-Bolt XL HT, Non-Gripping with I-Rod HT

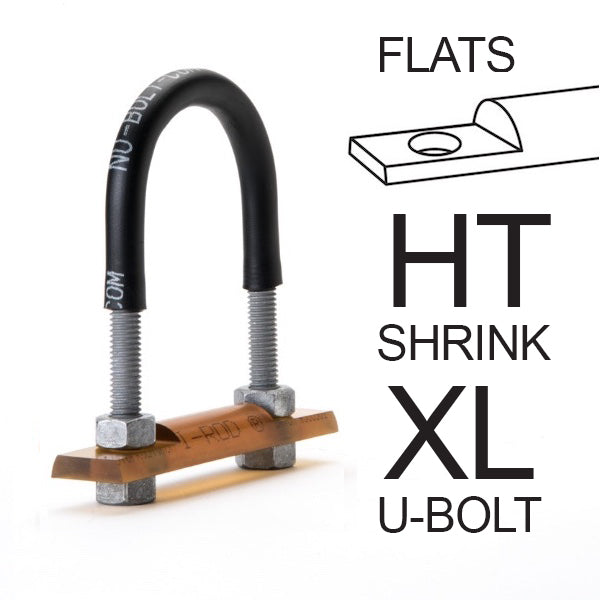

Nu-Bolt XL HT (high-temp) assembly, Non-Gripping for 2 inch pipe with I-Rod HT pipe support material machined with Flats and 4 nuts, shipped unassembled.
- 1 x Hot Dip Galvanized XL U-Bolt ASTM A36 3/8-16 stock with HT Polyshrink™
- 1 x I-Rod HT support: cut and drilled, ends machined with Flats
- 4 x HDG heavy hex nuts 3/8-16

*Non-Gripping: XL U-Bolts are manufactured larger to provide a 1/4 inch gap all the way around the pipe.

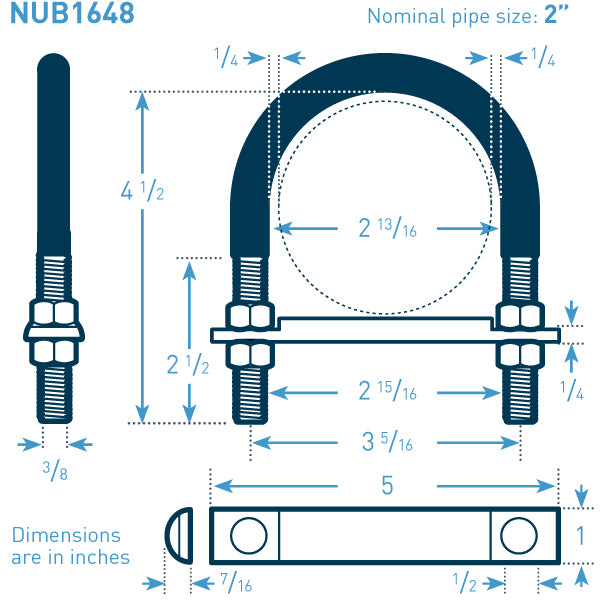

U-Bolt Size: 2 in NPS x 0.375 in bolt stock XL (0.25 in space around pipe)

Bolt Stock (in):

Bolt Coating: Hot Dip Galvanized

Polyshrink: High Temp (HT)

Gripping?: Non-Gripping

I-Rod material: I-Rod HT (amber)

Temp:

I-Rod Size: 1.00 in dia x 0.4375 in height

I-Rod length (in): 5.0
