10 in Galvanized Nu-Bolt, Non-Gripping with Peek

In stock
SKU: NUB1068
Regular price $311.80

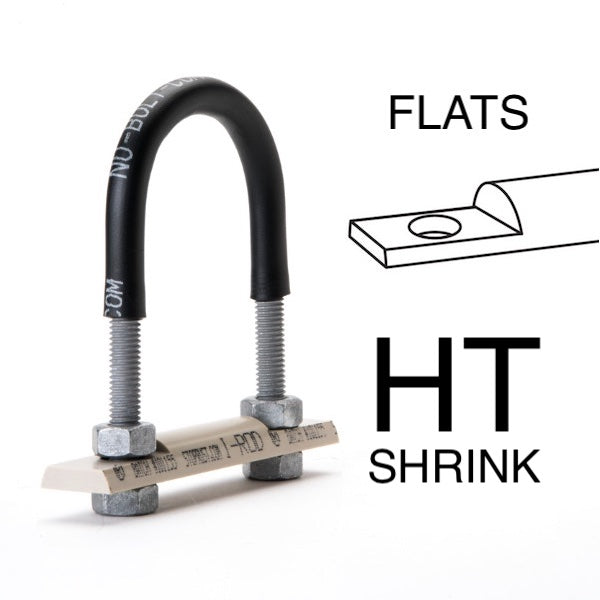

Nu-Bolt assembly for 10 inch pipe with Non-gripping I-Rod PEEK pipe support material and 4 nuts, shipped unassembled.
- 1 x HDG Domestic U-Bolt ASTM A36 3/4-10 stock with HT Polyshrink™
- 1 x Non-gripping-Rod PEEK support: cut and drilled
- 4 x HDG heavy hex nuts 3/4-10

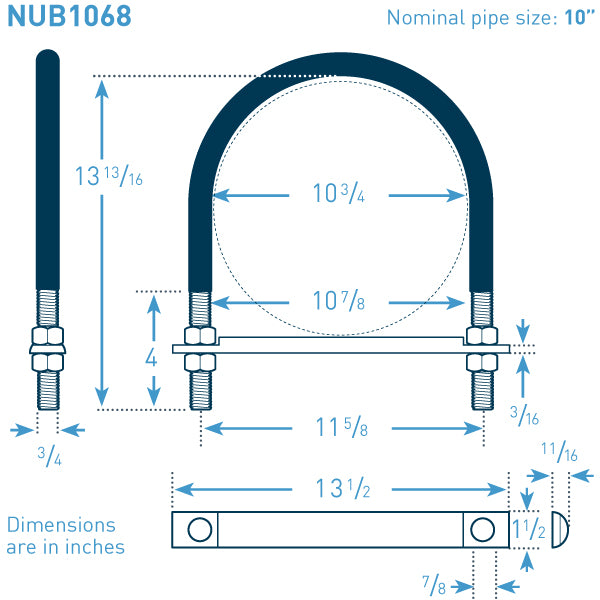

U-Bolt Size: 10 in NPS x 0.75 in bolt stock

Bolt Stock (in): 3/4 inch (0.75)

Bolt Coating: Hot Dip Galvanized

Polyshrink: High Temp (HT)

Gripping?: Gripping

I-Rod material: Peek (tan)

Temp: up to 480°F (249°C)

I-Rod Size: 1.50 in dia x 0.6875 in height

I-Rod length (in): 13.5
