3.5 in Galvanized Nu-Bolt with Flats
Regular price
$18.35
Couldn't load pickup availability

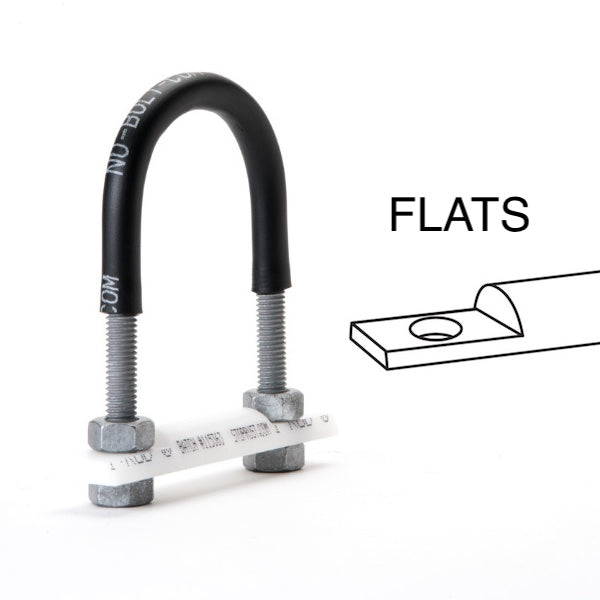

Nu-Bolt assembly for 3-1/2 inch pipe with I-Rod pipe support material machined with Flats and 4 nuts, shipped unassembled.
- 1 x Hot Dip Galvanized U-Bolt ASTM A36 1/2-13 stock with Polyshrink™
- 1 x I-Rod support: cut and drilled, ends machined with Flats
- 4 x HDG heavy hex nuts 1/2-13

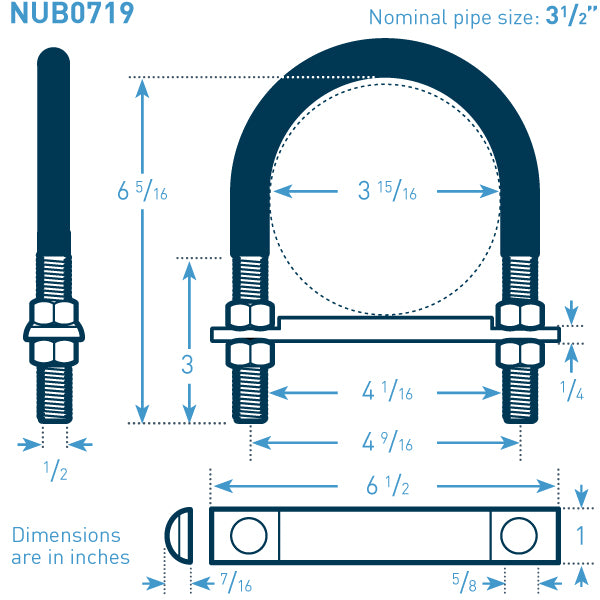

U-Bolt Size: 3.5 in NPS x 0.5 in bolt stock
Bolt Stock (in): 1/2 inch (0.50)
Bolt Coating: Hot Dip Galvanized
Polyshrink: Standard
Gripping?: Gripping
I-Rod material: I-Rod (white)
Temp: -166 to 181°F (-110 to 83°C)
I-Rod Size: 1.00 in dia x 0.4375 in height
I-Rod length (in): 6.5
Price | SKU |
---|---|
$12.27 | NUB0567 |
$12.56 | NUB0568 |
$124.54 | NUB0579 |
$89.21 | NUB0561 |
$65.94 | NUB0576 |
$187.15 | NUB0580 |
$52.09 | NUB0575 |
$103.55 | NUB0578 |
$18.90 | NUB0572 |
$17.00 | NUB0570 |
$29.38 | NUB0560 |
$218.21 | NUB0581 |
$240.79 | NUB0722 |
$26.67 | NUB0573 |
$164.92 | NUB0562 |
$71.61 | NUB0577 |
$33.57 | NUB0574 |
$18.35 | NUB0719 |
$13.59 | NUB0569 |
$13.19 | NUB0592 |
$10.78 | NUB0566 |
$10.52 | NUB0564 |
$12.13 | NUB0715 |
$12.17 | NUB0565 |
$10.27 | NUB0563 |
$17.27 | NUB0571 |
