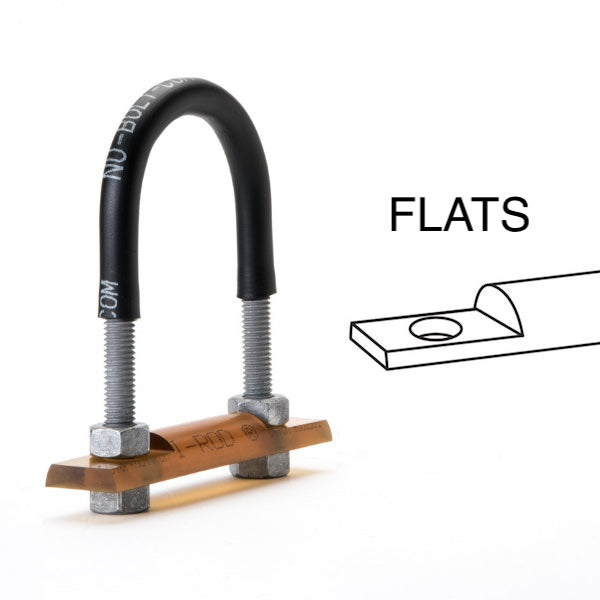

14 in Galvanized Nu-Bolt with I-Rod HT with Flats

Nu-Bolt assembly for 14 inch pipe with I-Rod HT pipe support material machined with Flats and 4 nuts, shipped unassembled.
- 1 x HDG Domestic U-Bolt ASTM A36 7/8-9 stock with Polyshrink™
- 1 x I-Rod HT support: cut and drilled, ends machined with Flats
- 4 x HDG heavy hex nuts 7/8-9

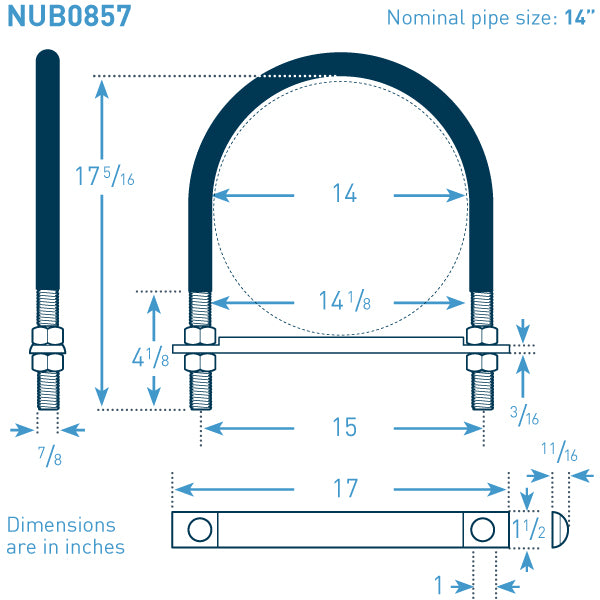

U-Bolt Size: 14 in NPS x 0.875 in bolt stock

Bolt Stock (in): 7/8 inch (0.875)

Bolt Coating: Hot Dip Galvanized

Polyshrink: Standard

Gripping?: Gripping

I-Rod material: I-Rod HT (amber)

Temp: up to 340°F (171°C)

I-Rod Size: 1.50 in dia x 0.6875 in height

I-Rod length (in): 17.0
