16 in Galvanized Nu-Bolt HT with I-Rod HT
Regular price
R$ 2.745,00
inc. VAT
Couldn't load pickup availability

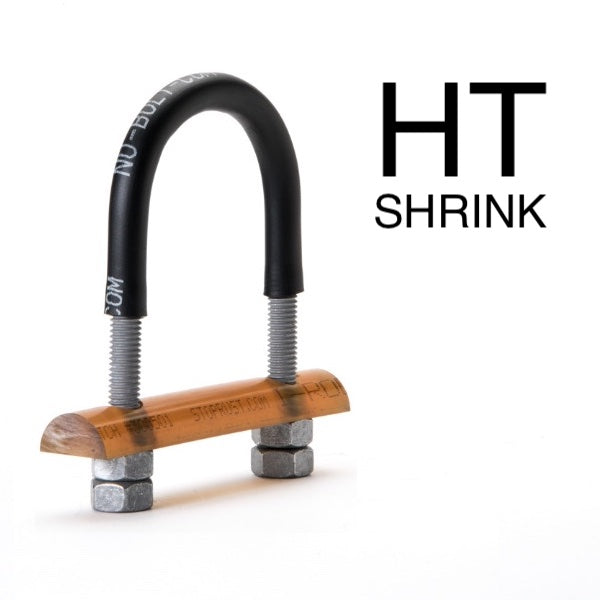

Nu-Bolt HT (high-temp) assembly for 16 inch pipe with I-Rod HT pipe support material and 4 nuts, shipped unassembled.
- 1 x Hot Dip Galvanized U-Bolt ASTM A36 7/8-9 stock with HT Polyshrink™
- 1 x Half-round I-Rod HT support: cut and drilled
- 4 x HDG heavy hex nuts 7/8-9

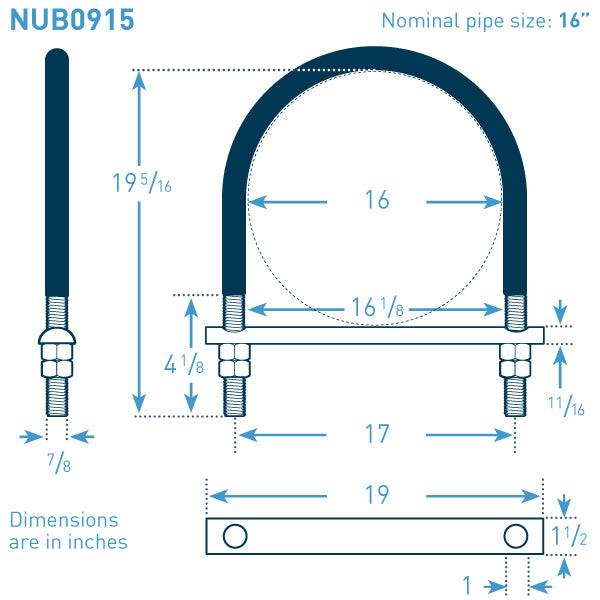

U-Bolt Size: 16 in NPS x 0.875 in bolt stock
Bolt Stock (in): 7/8 inch (0.875)
Bolt Coating: Hot Dip Galvanized
Polyshrink: High Temp (HT)
Gripping?: Gripping
I-Rod material: I-Rod HT (amber)
Temp: up to 340°F (171°C)
I-Rod Size: 1.50 in dia x 0.6875 in height
I-Rod length (in): 19.0
Price | SKU |
---|---|
R$ 5.650,00 | NUB0918 |
R$ 6.645,00 | NUB0921 |
R$ 4.629,00 | NUB0917 |
R$ 2.745,00 | NUB0915 |
R$ 7.793,00 | NUB0922 |
R$ 2.243,00 | NUB0913 |
R$ 1.109,00 | NUB0911 |
R$ 636,00 | NUB0908 |
R$ 6.079,00 | NUB0920 |
R$ 3.863,00 | NUB0916 |
R$ 2.443,00 | NUB0914 |
R$ 1.866,00 | NUB0912 |
R$ 962,00 | NUB0910 |
R$ 731,00 | NUB0909 |
R$ 464,00 | NUB0905 |
R$ 406,00 | NUB0903 |
R$ 227,00 | NUB0897 |
R$ 285,00 | NUB0898 |
R$ 342,00 | NUB0902 |
R$ 324,00 | NUB0901 |
R$ 231,00 | NUB0899 |
R$ 290,00 | NUB0900 |
R$ 556,00 | NUB0906 |
