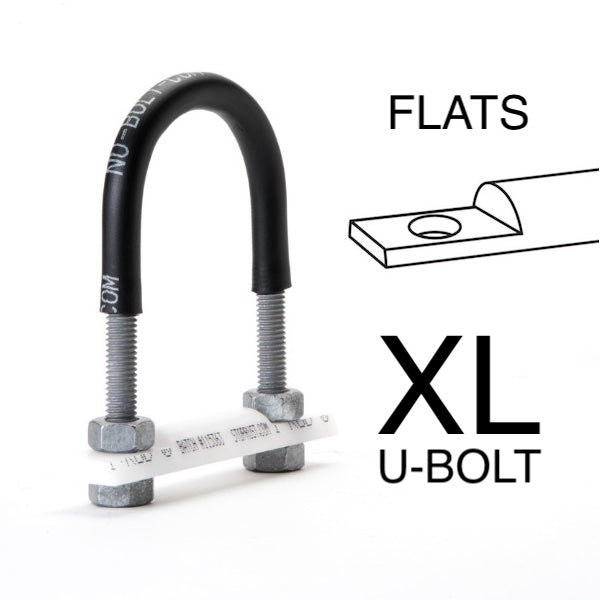

18 in Galvanized Nu-Bolt XL, Non-Gripping

Nu-Bolt XL assembly, Non-Gripping for 18 inch pipe with I-Rod pipe support material machined with Flats and 4 nuts, shipped unassembled. (Imperial)
- 1 x Hot Dip Galvanized XL U-Bolt ASTM A36 1-8 stock with Polyshrink™
- 1 x I-Rod support: cut and drilled, ends machined with Flats
- 4 x HDG heavy hex nuts 1-8

*Non-Gripping: XL U-Bolts are manufactured larger to provide a 1/4 inch gap all the way around the pipe.

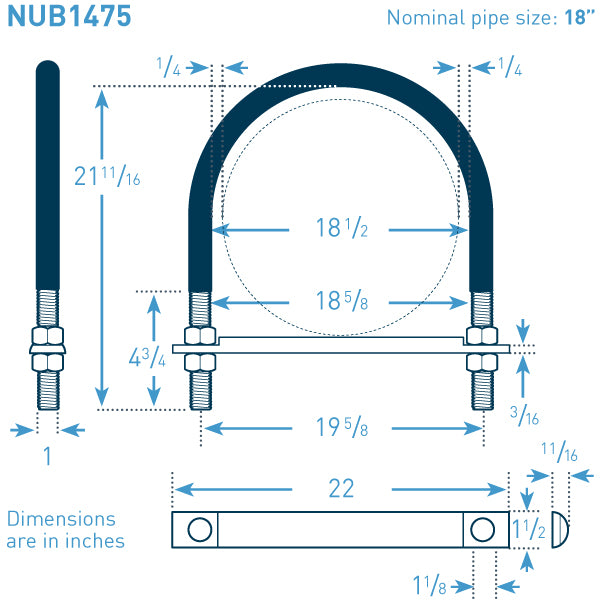

U-Bolt Size: 18 in NPS x 1 in bolt stock XL (0.25 in space around pipe)

Bolt Stock (in): 1 inch (1.00)

Bolt Coating: Hot Dip Galvanized

Polyshrink: Standard

Gripping?: Non-Gripping

I-Rod material: I-Rod (white)

Temp: -166 to 181°F (-110 to 83°C)

I-Rod Size: 1.50 in dia x 0.6875 in height

I-Rod length (in): 22.0
