18 in Stainless Nu-Bolt with I-Rod HT
Regular price
R$ 4.161,00
inc. VAT
Pickup available at 13813 FM 529
Usually ready in 2-4 days

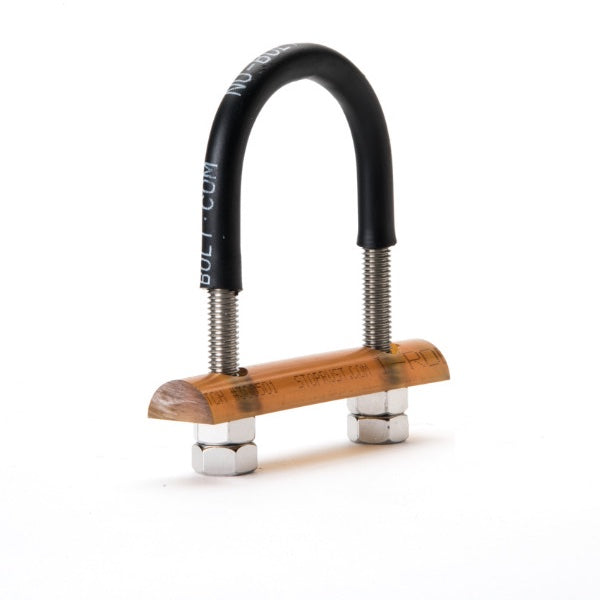

316SS Nu-Bolt assembly for 18 inch pipe with I-Rod HT pipe support material and 4 nuts, shipped unassembled.
- 1 x 316SS U-Bolt ASTM A276, A555 or AISI (316/316L) 1-8 stock with Polyshrink™
- 1 x Half-round I-Rod HT support: cut and drilled
- 4 x 316SS heavy hex nuts 1-8

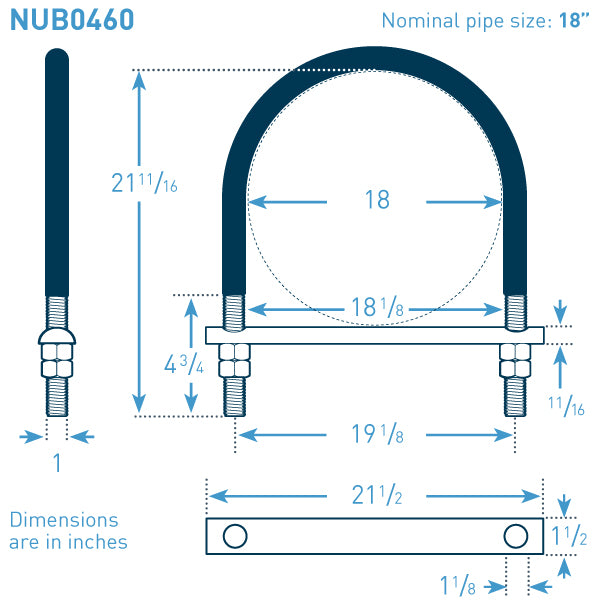

U-Bolt Size: 18 in NPS x 1 in bolt stock
Bolt Stock (in): 1 inch (1.00)
Bolt Coating: 316 Stainless Steel
Polyshrink: Standard
Gripping?: Gripping
I-Rod material: I-Rod HT (amber)
Temp: up to 340°F (171°C)
I-Rod Size: 1.50 in dia x 0.6875 in height
I-Rod length (in): 21.5
| Bolt stock | Hole diameter in | Inside gap bolt | Inside gap shrink in | I rod diameter | I rod height in | I rod length in2 | Nominal pipe diameter | Nuts included | Overall height in | Overal width in | Thread length | U bolt height | Price | SKU |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.25 | 0.375 | 1.375 | 1.25 | 0.75 | 0.3125 | 3.0 | 1 in | 4.0 | 3.69 | 2.0 | 2.375 | 3.4375 | R$ 220,00 | NUB0451 |
| 0.25 | 0.375 | 1.125 | 1.0 | 0.75 | 0.3125 | 3.0 | 0.75 in | 4.0 | 3.75 | 1.56 | 2.375 | 3.3125 | R$ 213,00 | NUB0449 |
| 0.25 | 0.375 | 0.9375 | 0.8125 | 0.75 | 0.3125 | 2.5 | 0.50 in | 4.0 | 3.5 | 1.38 | 2.375 | 3.25 | R$ 198,00 | NUB0447 |
| 0.375 | 0.5 | 2.0 | 1.875 | 1.0 | 0.4375 | 4.0 | 1.50 in | 4.0 | 4.31 | 2.88 | 2.5 | 4.0 | R$ 363,00 | NUB0417 |
| 0.375 | 0.5 | 1.375 | 1.25 | 1.0 | 0.4375 | 3.0 | 1 in | 4.0 | N/A | N/A | 2.375 | 3.4375 | R$ 280,00 | NUB0197 |
| 0.375 | 0.5 | 2.4375 | 2.3125 | 1.0 | 0.4375 | 4.5 | 2 in | 4.0 | 4.81 | 3.31 | 2.5 | 4.5 | R$ 424,00 | NUB0418 |
| 0.375 | 0.5 | 1.125 | 1.0 | 1.0 | 0.4375 | 3.0 | 0.75 in | 4.0 | 3.75 | 1.75 | 2.375 | 3.3125 | R$ 274,00 | NUB0450 |
| 0.375 | 0.5 | 0.9375 | 0.8125 | 1.0 | 0.4375 | 2.5 | 0.50 in | 4.0 | 3.5 | 1.63 | 2.375 | 3.25 | R$ 270,00 | NUB0448 |
| 0.5 | 0.625 | 4.5625 | 4.4375 | 1.0 | 0.4375 | 7.0 | 4 in | 4.0 | 7.25 | 5.69 | 3.0 | 6.8125 | R$ 655,00 | NUB0419 |
| 0.5 | 0.625 | 3.5625 | 3.4375 | 1.0 | 0.4375 | 6.0 | 3 in | 4.0 | 6.25 | 4.69 | 3.4375 | 3.0 | R$ 580,00 | NUB0452 |
| 0.5 | 0.625 | 2.9375 | 2.8125 | 1.0 | 0.4375 | 5.0 | 2.50 in | 4.0 | 4.81 | 3.31 | 2.5 | 4.5 | R$ 465,00 | NUB0622 |
| 0.625 | 0.6875 | 6.875 | 6.625 | 1.0 | 0.4375 | 9.0 | 6 in | 4.0 | 10.06 | 8.13 | 3.75 | 9.5 | R$ 1.461,00 | NUB0454 |
| 0.625 | 0.6875 | 8.875 | 8.625 | 1.0 | 0.4375 | 11.0 | 8 in | 4.0 | 12.06 | 10.13 | 3.75 | 11.5 | R$ 1.499,00 | NUB0455 |
| 0.75 | 0.875 | 10.875 | 10.75 | 1.5 | 0.6875 | 13.5 | 10 in | 4.0 | 14.5 | 12.5 | 4.0 | 13.8125 | R$ 2.483,00 | NUB0456 |
| 0.875 | 1.0 | 14.125 | 14.0 | 1.5 | 0.6875 | 17.0 | 14 in | 4.0 | 18.13 | 16.0 | 4.125 | 17.3125 | R$ 2.937,00 | NUB0458 |
| 0.875 | 1.0 | 16.125 | 16.0 | 1.5 | 0.6875 | 19.0 | 16 in | 4.0 | 20.13 | 18.0 | 4.125 | 19.3125 | R$ 3.218,00 | NUB0459 |
| 0.875 | 1.0 | 12.875 | 12.75 | 1.5 | 0.6875 | 16.0 | 12 in | 4.0 | 16.88 | 14.75 | 4.125 | 16.0625 | R$ 2.621,00 | NUB0457 |
| 1.0 | 1.125 | 18.125 | 18.0 | 1.5 | 0.6875 | 21.5 | 18 in | 4.0 | 22.63 | 20.25 | 4.75 | 21.6875 | R$ 4.161,00 | NUB0460 |
| 1.0 | 1.125 | 24.125 | 24.0 | 1.5 | 0.6875 | 27.5 | 24 in | 4.0 | 28.63 | 26.25 | 4.75 | 27.6875 | R$ 5.602,00 | NUB0624 |
| 1.0 | 1.125 | 20.125 | 20.0 | 1.5 | 0.6875 | 23.5 | 20 in | 4.0 | 24.63 | 22.25 | 4.75 | 23.6875 | R$ 5.168,00 | NUB0462 |
