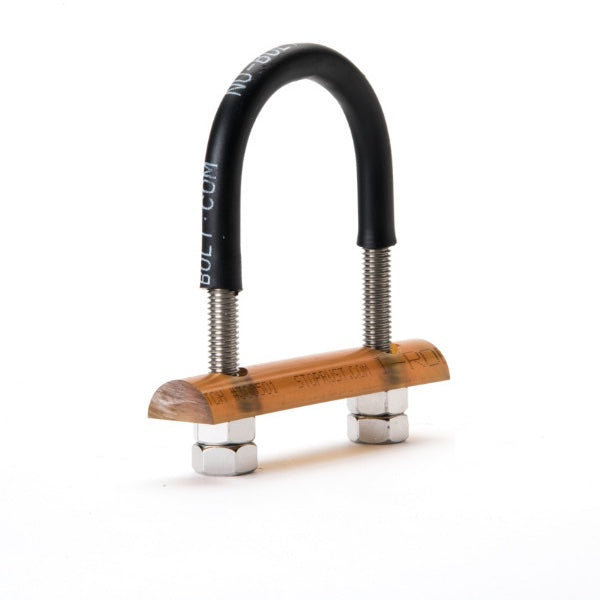

20 in Stainless Nu-Bolt with I-Rod HT

316SS Nu-Bolt assembly for 20 inch pipe with I-Rod HT pipe support material and 4 nuts, shipped unassembled.
- 1 x 316SS U-Bolt ASTM A276, A555 or AISI (316/316L) 1-8 stock with Polyshrink™
- 1 x Half-round I-Rod HT support: cut and drilled
- 4 x 316SS heavy hex nuts 1-8

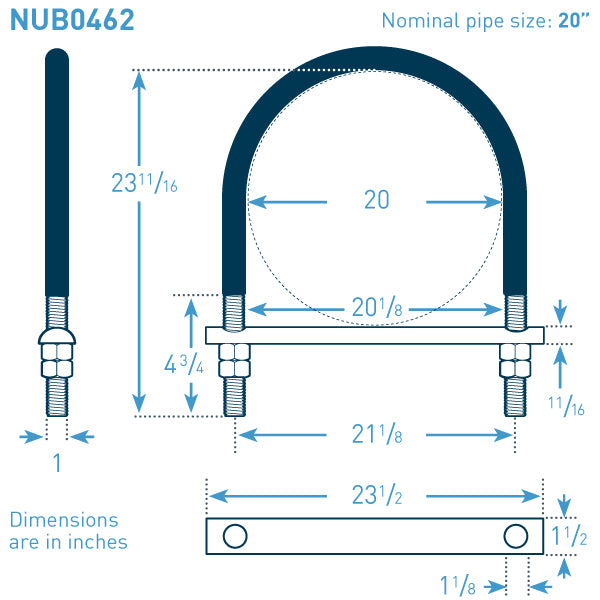

U-Bolt Size: 20 in NPS x 1 in bolt stock

Bolt Stock (in): 1 inch (1.00)

Bolt Coating: 316 Stainless Steel

Polyshrink: Standard

Gripping?: Gripping

I-Rod material: I-Rod HT (amber)

Temp: up to 340°F (171°C)

I-Rod Size: 1.50 in dia x 0.6875 in height

I-Rod length (in): 23.5
