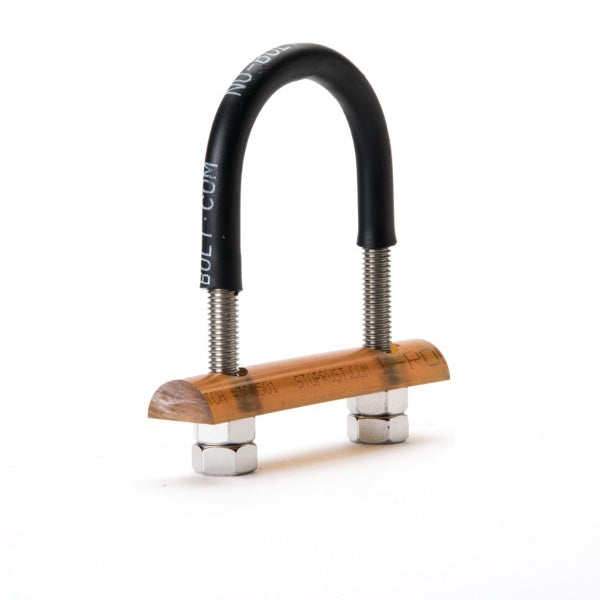

3/4 in Stainless Nu-Bolt with I-Rod HT

316SS Nu-Bolt assembly for 3/4 inch pipe with I-Rod HT pipe support material and 4 nuts, shipped unassembled.
- 1 x 316SS U-Bolt ASTM A276, A555 or AISI (316/316L) 1/-20 stock with Polyshrink™
- 1 x Half-round I-Rod HT support: cut and drilled
- 4 x 316SS heavy hex nuts 1/4-20

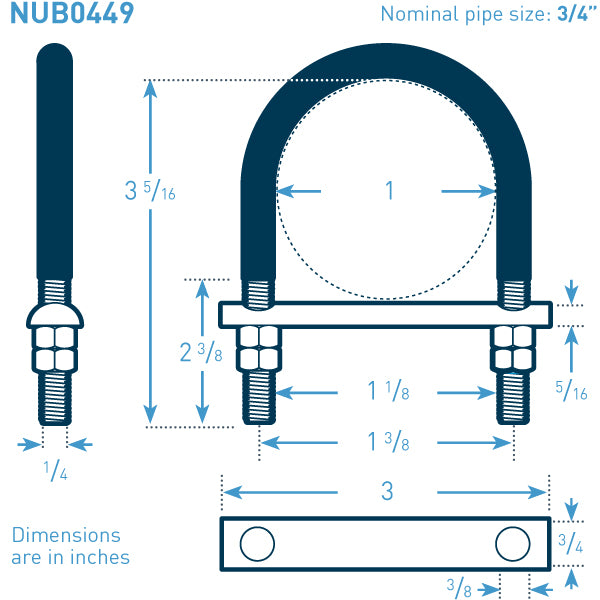

U-Bolt Size: 0.75 in NPS x 0.25 in bolt stock

Bolt Stock (in): 1/4 inch (0.25)

Bolt Coating: 316 Stainless Steel

Polyshrink: Standard

Gripping?: Gripping

I-Rod material: I-Rod HT (amber)

Temp: up to 340°F (171°C)

I-Rod Size: 0.75 in dia x 0.3125 in height

I-Rod length (in): 3.0
