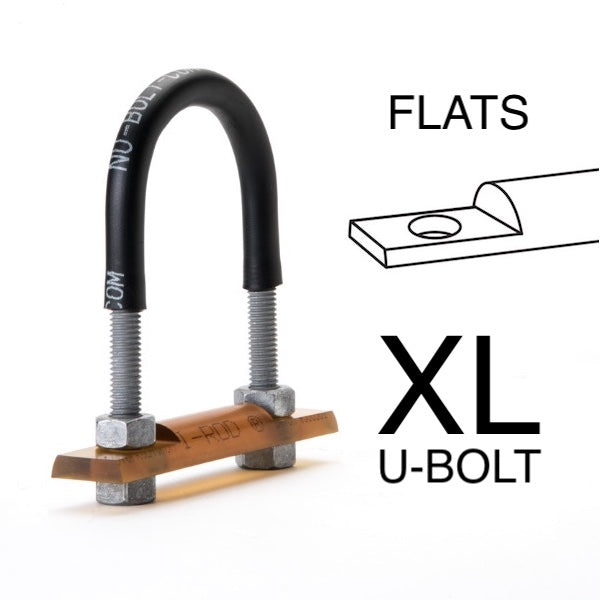

3 in Galvanized Nu-Bolt XL, Non-Gripping with I-Rod HT

Nu-Bolt XL assembly, Non-Gripping for 3 inch pipe with I-Rod HT pipe support material machined with Flats and 4 nuts, shipped unassembled.
- 1 x Hot Dip Galvanized XL U-Bolt ASTM A36 1/2-13 stock with Polyshrink™
- I-Rod HT support: cut and drilled, ends machined with Flats
- 4 x HDG heavy hex nuts 1/2-13

*Non-Gripping: XL U-Bolts are manufactured larger to provide a 1/4 inch gap all the way around the pipe.

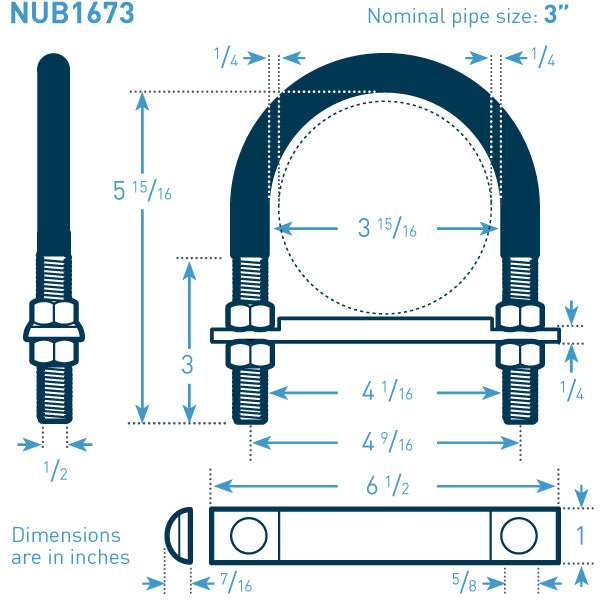

U-Bolt Size: 3 in NPS x 0.5 in bolt stock XL (0.25 in space around pipe)

Bolt Stock (in): 1/2 inch (0.50)

Bolt Coating: Hot Dip Galvanized

Polyshrink: Standard

Gripping?: Non-Gripping

I-Rod material: I-Rod HT (amber)

Temp: up to 340°F (171°C)

I-Rod Size: 1.00 in dia x 0.4375 in height

I-Rod length (in): 0.5
