5 in Galvanized Nu-Bolt, Gripping with Peek
Regular price
R$ 1.919,00
inc. VAT
Couldn't load pickup availability

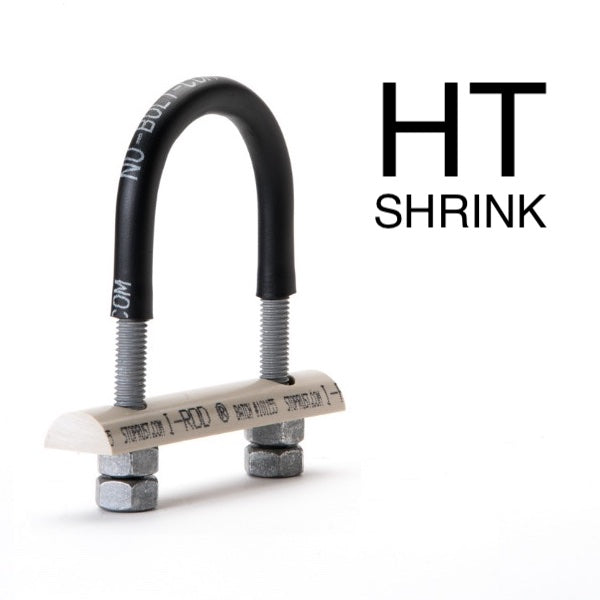

Nu-Bolt assembly for 5 inch pipe with I-Rod PEEK pipe support material and 4 nuts, shipped unassembled.
- 1 x HDG U-Bolt ASTM A36 1/2-136 stock with HT Polyshrink™
- 1 x Half-round I-Rod PEEK support: cut and drilled
- 4 x HDG heavy hex nuts 1/2-13

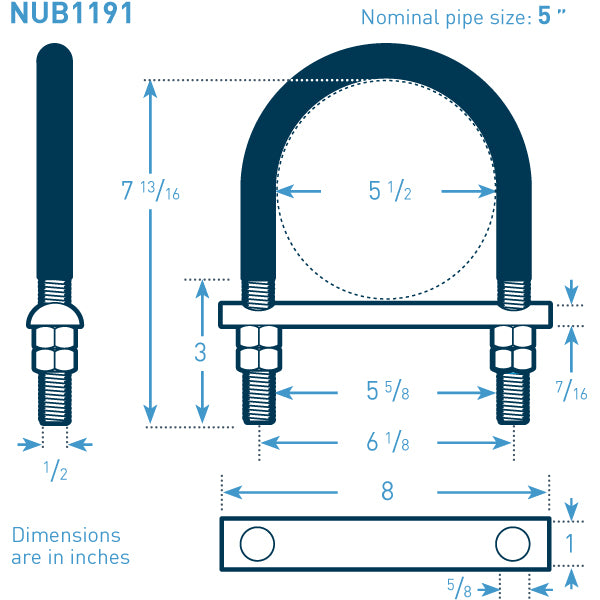

U-Bolt Size: 5 in NPS x 0.5 in bolt stock
Bolt Stock (in): 1/2 inch (0.50)
Bolt Coating: Hot Dip Galvanized
Polyshrink: High Temp (HT)
Gripping?: Gripping
I-Rod material: Peek (tan)
Temp: up to 480°F (249°C)
I-Rod Size: 1.00 in dia x 0.4375 in height
I-Rod length (in): 8.0
Price | SKU |
---|---|
R$ 8.843,00 | NUB1200 |
R$ 7.097,00 | NUB1199 |
R$ 10.652,00 | NUB1203 |
R$ 10.124,00 | NUB1201 |
R$ 2.810,00 | NUB1193 |
R$ 2.269,00 | NUB1192 |
R$ 1.480,00 | NUB1189 |
R$ 1.249,00 | NUB1186 |
R$ 725,00 | NUB1185 |
R$ 1.665,00 | NUB1190 |
R$ 627,00 | NUB1183 |
R$ 1.919,00 | NUB1191 |
R$ 524,00 | NUB1181 |
R$ 1.296,00 | NUB1187 |
R$ 574,00 | NUB1180 |
R$ 602,00 | NUB1182 |
R$ 495,00 | NUB1179 |
R$ 1.437,00 | NUB1188 |
