Drilled I-Rod HT for 8 in pipe U-bolt, Non-Gripping
Regular price
R$ 581,00
inc. VAT
Couldn't load pickup availability

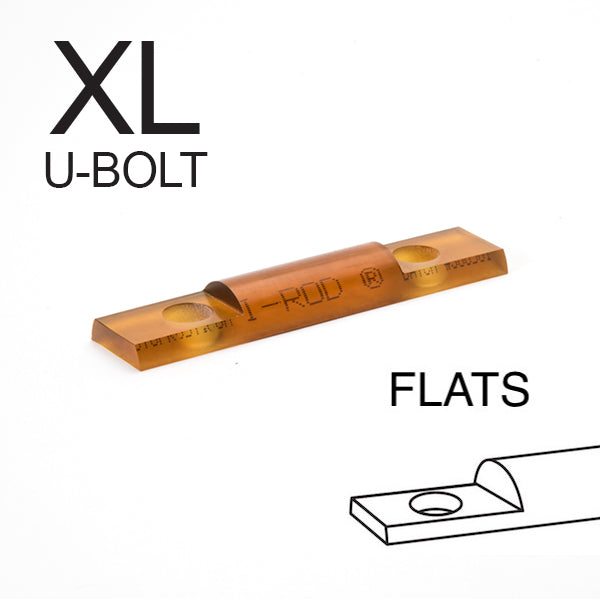

Drilled I-Rod 8 inch X 5/8 inch XL FLAT I-ROD HT
U-Bolt Size: 8 in NPS x 0.625 in bolt stock XL (0.25 in space around pipe)
Bolt Stock (in): 5/8 inch (0.625)
Bolt Coating:
Polyshrink:
Gripping?: Non-Gripping
I-Rod material: I-Rod HT (amber)
Temp: up to 340°F (171°C)

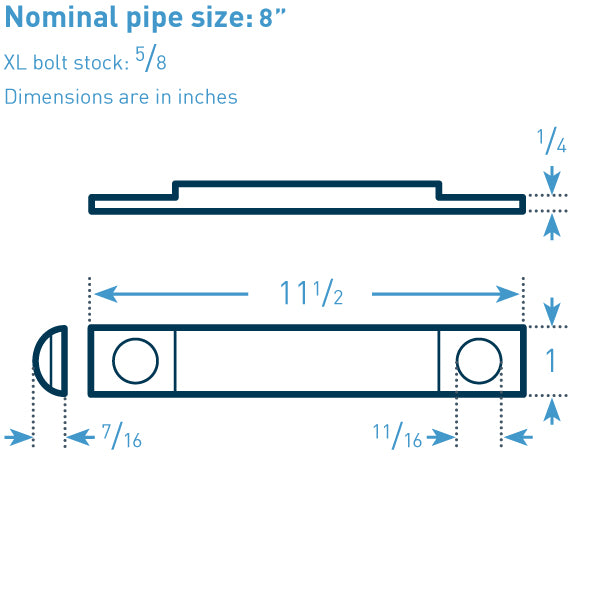

I-Rod Size: 1.00 in dia x 0.4375 in height
I-Rod length (in): 11.5
| Bolt stock | Hole diameter in | I rod diameter | I rod height in | I rod length in2 | Nominal pipe diameter | Price | SKU |
|---|---|---|---|---|---|---|---|
| 0.25 | 0.375 | 0.75 | 0.3125 | 3.0 | 0.50 in | R$ 142,00 | ROD0742 |
| 0.25 | 0.375 | 0.75 | 0.3125 | 3.5 | 1 in | R$ 147,00 | ROD0745 |
| 0.25 | 0.375 | 0.75 | 0.3125 | 3.5 | 0.75 in | R$ 147,00 | ROD0743 |
| 0.375 | 0.5 | 1.0 | 0.4375 | 3.5 | 0.75 in | R$ 196,00 | ROD0744 |
| 0.375 | 0.5 | 1.0 | 0.4375 | 5.0 | 2 in | R$ 288,00 | ROD0748 |
| 0.375 | 0.5 | 1.0 | 0.4375 | 3.5 | 1 in | R$ 196,00 | ROD0746 |
| 0.375 | 0.5 | 1.0 | 0.4375 | 4.5 | 1.50 in | R$ 228,00 | ROD0747 |
| 0.5 | 0.625 | 1.0 | 0.4375 | 7.5 | 4 in | R$ 414,00 | ROD0751 |
| 0.5 | 0.625 | 1.0 | 0.4375 | 8.5 | 5 in | R$ 444,00 | ROD0752 |
| 0.5 | 0.625 | 1.0 | 0.4375 | 5.5 | 2.50 in | R$ 321,00 | ROD0749 |
| 0.5 | 0.625 | 1.0 | 0.4375 | 6.5 | 3 in | R$ 364,00 | ROD0750 |
| 0.625 | 0.6875 | 1.0 | 0.4375 | 9.5 | 6 in | R$ 523,00 | ROD0753 |
| 0.625 | 0.6875 | 1.0 | 0.4375 | 11.5 | 8 in | R$ 581,00 | ROD0754 |
| 0.75 | 0.875 | 1.5 | 0.6875 | 14.0 | 10 in | R$ 1.192,00 | ROD0755 |
| 0.875 | 1.0 | 1.5 | 0.6875 | 16.5 | 12 in | R$ 1.425,00 | ROD0756 |
| 0.875 | 1.0 | 1.5 | 0.6875 | 17.5 | 14 in | R$ 1.662,00 | ROD0757 |
| 0.875 | 1.0 | 1.5 | 0.6875 | 19.5 | 16 in | R$ 1.751,00 | ROD0758 |
| 1.0 | 1.125 | 1.0 | 0.4375 | 22.0 | 18 in | R$ 2.205,00 | ROD0759 |
| 1.0 | 1.125 | 1.5 | 0.6875 | 28.0 | 24 in | R$ 2.632,00 | ROD0761 |
| 1.0 | 1.125 | 1.5 | 0.6875 | 40.0 | 36 in | R$ 4.648,00 | ROD0764 |
| 1.0 | 1.125 | 1.5 | 0.6875 | 24.0 | 20 in | R$ 2.459,00 | ROD0760 |
| 1.0 | 1.125 | 1.5 | 0.6875 | 34.0 | 30 in | R$ 3.837,00 | ROD0763 |
