1 in Galvanized Nu-Bolt, Gripping with Peek
Regular price
$41.76
Couldn't load pickup availability

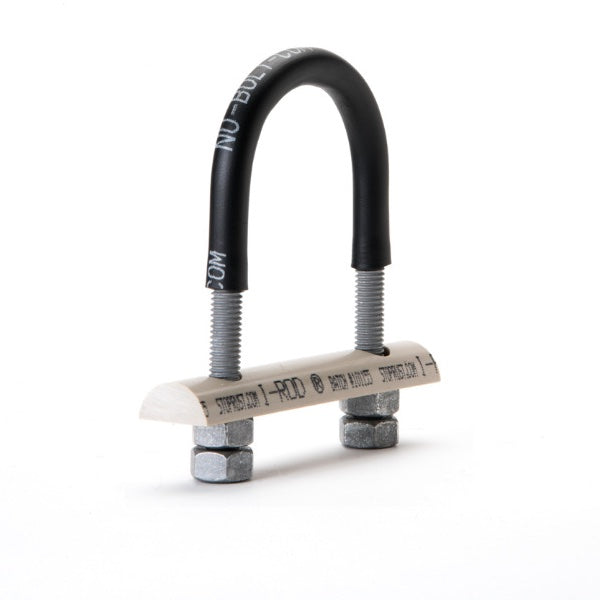

Nu-Bolt assembly for 1 inch pipe with I-Rod PEEK pipe support material and 4 nuts, shipped unassembled.
- 1 x HDG U-Bolt ASTM A36 1/4-20 stock with Polyshrink™
- 1 x Half-round I-Rod PEEK support: cut and drilled
- 4 x HDG heavy hex nuts 1/4-20

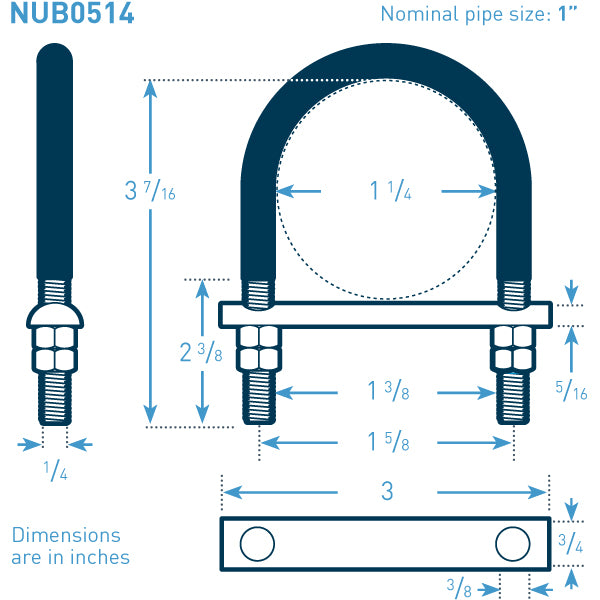

U-Bolt Size: 1 in NPS x 0.25 in bolt stock
Bolt Stock (in): 1/4 inch (0.25)
Bolt Coating: Hot Dip Galvanized
Polyshrink: Standard
Gripping?: Gripping
I-Rod material: Peek (tan)
Temp: up to 480°F (249°C)
I-Rod Size: 0.75 in dia x 0.3125 in height
I-Rod length (in): 3.0
Price | SKU |
---|---|
$832.33 | NUB0546 |
$302.91 | NUB0505 |
$694.05 | NUB0547 |
$591.08 | NUB0544 |
$487.05 | NUB0543 |
$160.00 | NUB0537 |
$177.59 | NUB0504 |
$709.36 | NUB0545 |
$109.31 | NUB0536 |
$431.69 | NUB0542 |
$384.45 | NUB0541 |
$339.98 | NUB0540 |
$256.25 | NUB0539 |
$50.79 | NUB0534 |
$47.74 | NUB0498 |
$52.87 | NUB0515 |
$140.12 | NUB0503 |
$107.58 | NUB0535 |
$57.49 | NUB0463 |
$41.76 | NUB0514 |
$39.69 | NUB0532 |
$45.67 | NUB0533 |
$37.67 | NUB0530 |
$43.84 | NUB0531 |
