12 in Galvanized Nu-Bolt, Gripping with Peek

In stock
SKU: NUB0505
Regular price $302.91

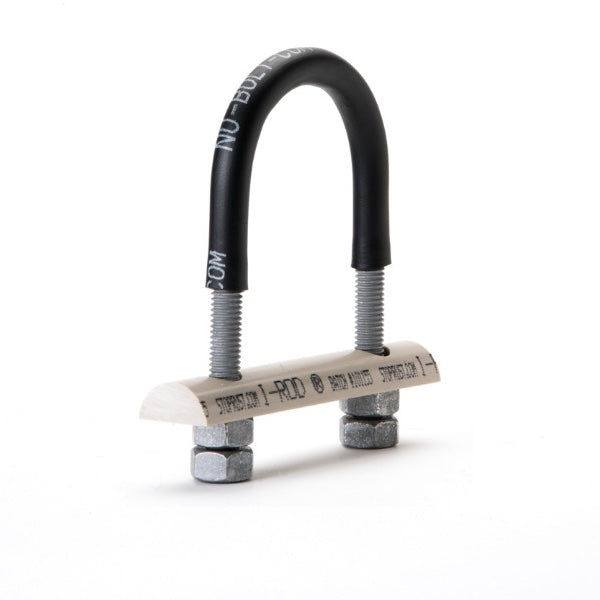

Nu-Bolt® assembly for 5 inch pipe with I-Rod® PEEK pipe support material and 4 nuts, shipped unassembled.
- 1 x HDG U-Bolt ASTM A36 1/2-13 stock with polyshrink
- 1 x Half-round I-Rod® PEEK support: cut and drilled
- 4 x HDG heavy hex nuts 1/2-13

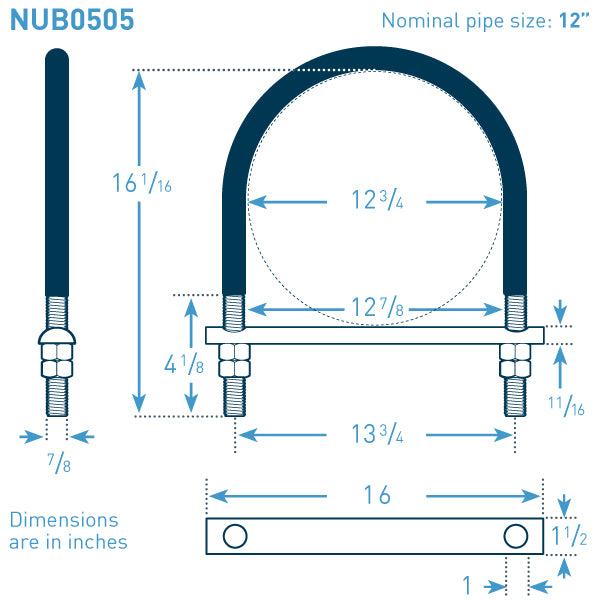

U-Bolt Size: 12 in NPS x 0.875 in bolt stock

Bolt Stock (in): 7/8 inch (0.875)

Bolt Coating: Hot Dip Galvanized

Polyshrink: Standard

Gripping?: Gripping

I-Rod material: Peek (tan)

Temp: up to 480°F (249°C)

I-Rod Size: 1.50 in dia x 0.6875 in height

I-Rod length (in): 16.0
