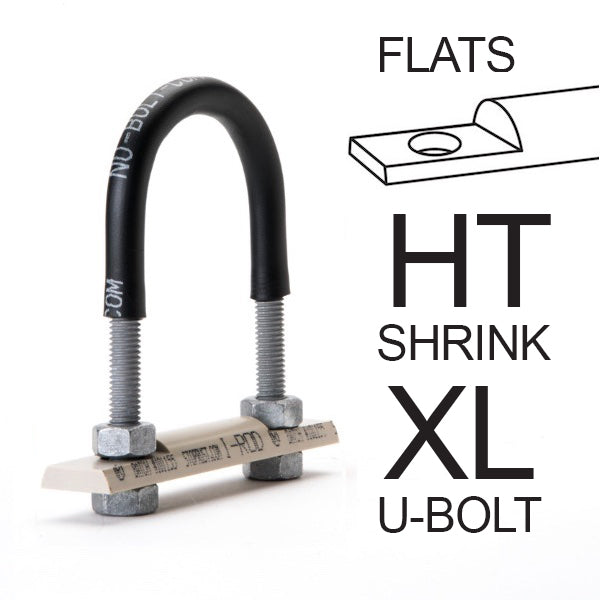

12 in Galvanized Nu-Bolt XL, Non-Gripping with Peek

Nu-Bolt 12 inch X 7/8-9, with (4) 7/8-9 HDG Heavy Hex Nuts with I-Rod PEEK w/ Flats and HT Polyshrink™

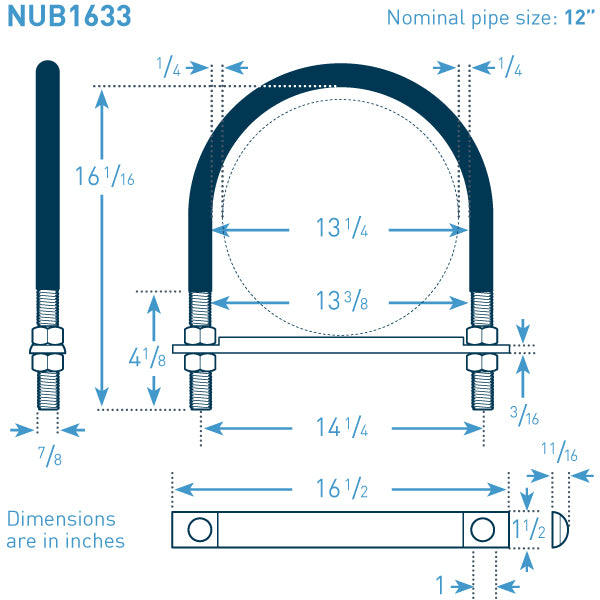

U-Bolt Size: 12 in NPS x 0.875 in bolt stock XL (0.25 in space around pipe)

Bolt Stock (in): 7/8 inch (0.875)

Bolt Coating: Hot Dip Galvanized

Polyshrink: High Temp (HT)

Gripping?: Non-Gripping

I-Rod material: Peek (tan)

Temp: up to 480°F (249°C)

I-Rod Size: 1.50 in dia x 0.6875 in height

I-Rod length (in): 16.5
