18 in Stainless Nu-Bolt HT with I-Rod HT
Regular price
$454.82
Couldn't load pickup availability

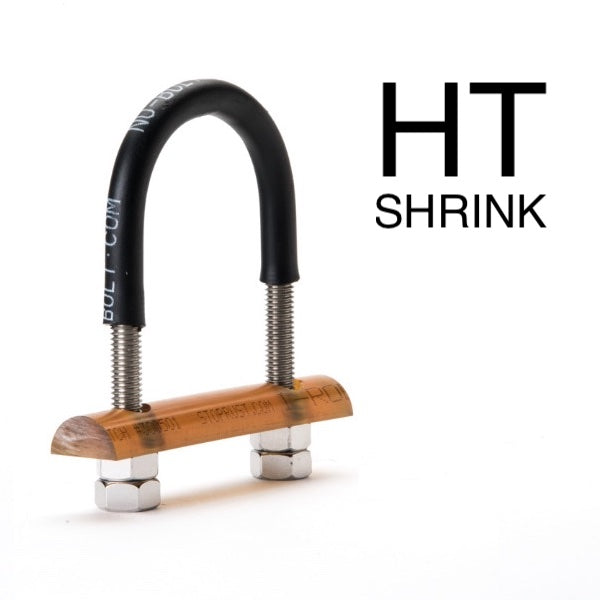

316SS Nu-Bolt HT (high-temp) assembly for 18 inch pipe with I-Rod HT pipe support material and 4 nuts, shipped unassembled.
- 1 x 316SS U-Bolt ASTM A276, A555 or AISI (316/316L) 1-8 stock with HT Polyshrink™
- 1 x Half-round I-Rod HT support: cut and drilled
- 4 x 316SS heavy hex nuts 1-8

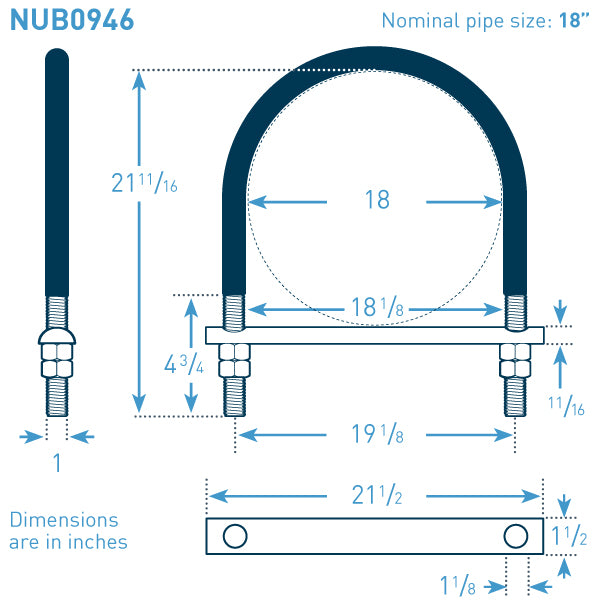

U-Bolt Size: 18 in NPS x 1 in bolt stock
Bolt Stock (in): 1 inch (1.00)
Bolt Coating: 316 Stainless Steel
Polyshrink: High Temp (HT)
Gripping?: Gripping
I-Rod material: I-Rod HT (amber)
Temp: up to 340°F (171°C)
I-Rod Size: 1.50 in dia x 0.6875 in height
I-Rod length (in): 21.5
| Price | SKU |
|---|---|
| $454.82 | NUB0946 |
| $396.15 | NUB0945 |
| $335.93 | NUB0943 |
| $309.78 | NUB0942 |
| $366.84 | NUB0944 |
| $190.81 | NUB0940 |
| $77.81 | NUB0938 |
| $657.80 | NUB0948 |
| $88.96 | NUB0939 |
| $558.65 | NUB0947 |
| $42.47 | NUB0932 |
| $67.71 | NUB0935 |
| $184.71 | NUB0941 |
| $49.53 | NUB0933 |
| $26.44 | NUB0927 |
| $40.35 | NUB0931 |
| $27.77 | NUB0929 |
| $36.51 | NUB0930 |
| $35.38 | NUB0928 |
| $35.38 | NUB0926 |
| $23.75 | NUB0925 |
