3 in Galvanized Nu-Bolt XL, Non-Gripping with I-Rod Peek

In stock
SKU: NUB1627
Regular price $140.11

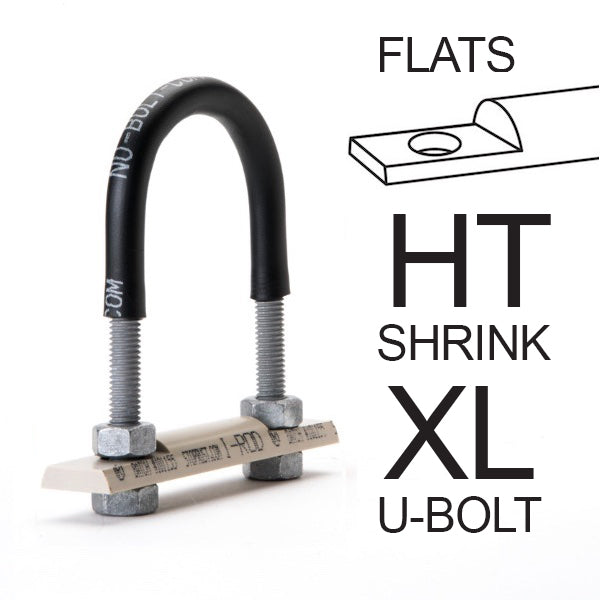

Nu-Bolt® assembly for 3 inch pipe with I-Rod® Peek pipe support material and 4 nuts, shipped unassembled.
- 1 x HDG XL U-Bolt ASTM A36 1/2-13 stock with HT poly-shrink
- 1 x I-Rod® Peek support: cut and drilled (Non-gripping)
- 4 x HDG heavy hex nuts 1/2-13

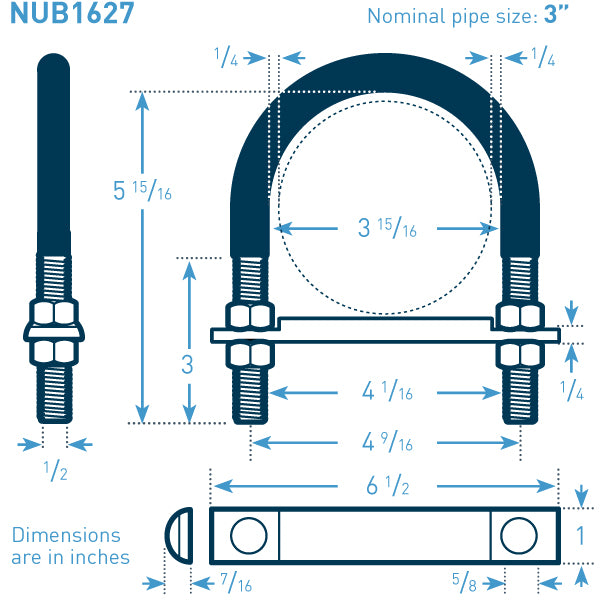

U-Bolt Size: 3 in NPS x 0.5 in bolt stock XL (0.25 in space around pipe)

Bolt Stock (in): 1/2 inch (0.50)

Bolt Coating: Hot Dip Galvanized

Polyshrink: High Temp (HT)

Gripping?: Non-Gripping

I-Rod material: Peek (tan)

Temp: up to 480°F (249°C)

I-Rod Size: 1.00 in dia x 0.4375 in height

I-Rod length (in):
