30 in Galvanized Nu-Bolt
Regular price
$174.58
Couldn't load pickup availability

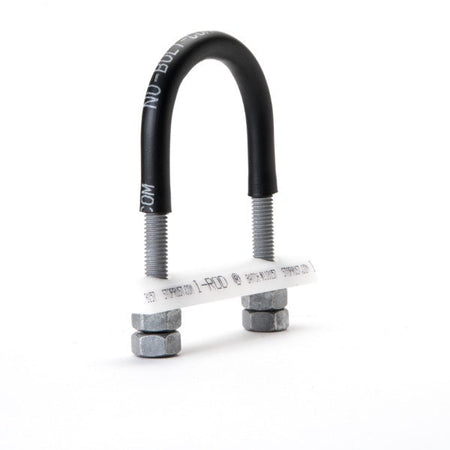

Nu-Bolt assembly for 30 inch pipe with I-Rod pipe support material and 4 nuts, shipped unassembled.
- 1 x HDG Domestic U-Bolt ASTM A36 1-8 stock with polyshrink
- 1 x Half-round I-Rod support: cut and drilled
- 4 x HDG heavy hex nuts 1-8

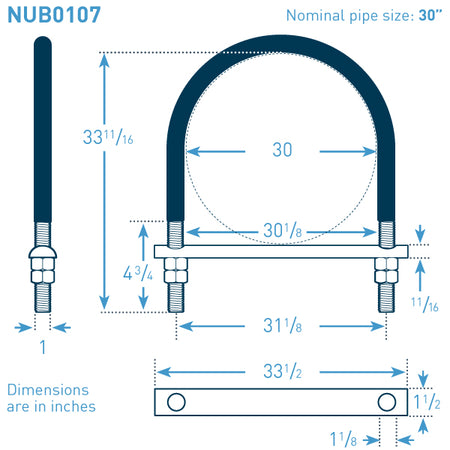

U-Bolt Size: 30 in NPS x 1 in bolt stock
Bolt Stock (in): 1 inch (1.00)
Bolt Coating: Hot Dip Galvanized
Polyshrink: Standard
Gripping?: Gripping
I-Rod material: I-Rod (white)
Temp: -166 to 181°F (-110 to 83°C)
I-Rod Size: 1.50 in dia x 0.6875 in height
I-Rod length (in): 33.5
