5 in Galvanized Nu-Bolt, Gripping with Peek
Regular price
$160.00
Couldn't load pickup availability

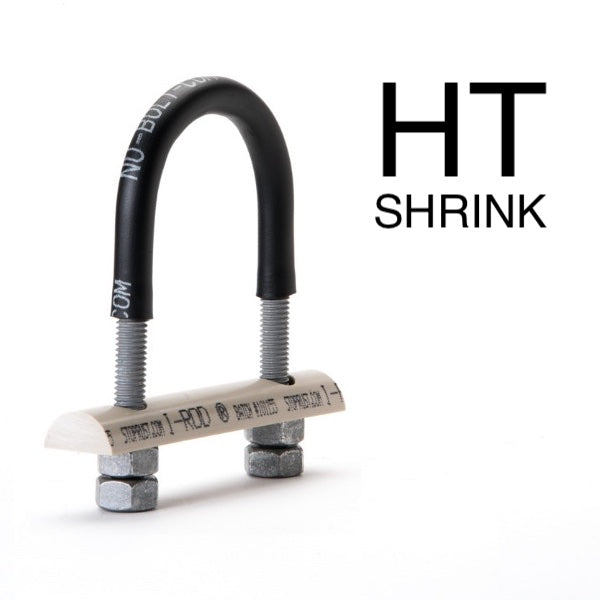

Nu-Bolt assembly for 5 inch pipe with I-Rod PEEK pipe support material and 4 nuts, shipped unassembled.
- 1 x HDG U-Bolt ASTM A36 1/2-13 stock with Polyshrink™
- 1 x Half-round I-Rod PEEK support: cut and drilled
- 4 x HDG heavy hex nuts 1/2-13

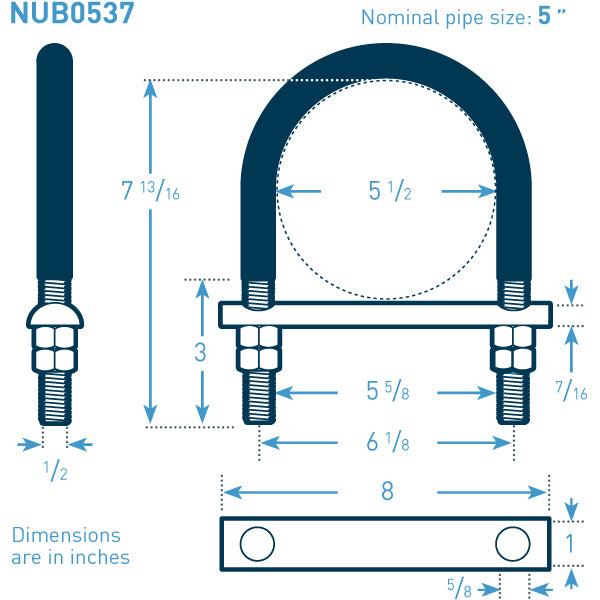

U-Bolt Size: 5 in NPS x 0.5 in bolt stock
Bolt Stock (in): 1/2 inch (0.50)
Bolt Coating: Hot Dip Galvanized
Polyshrink: Standard
Gripping?: Gripping
I-Rod material: Peek (tan)
Temp: up to 480°F (249°C)
I-Rod Size: 1.00 in dia x 0.4375 in height
I-Rod length (in): 8.0
| Price | SKU |
|---|---|
| $832.33 | NUB0546 |
| $302.91 | NUB0505 |
| $694.05 | NUB0547 |
| $591.08 | NUB0544 |
| $487.05 | NUB0543 |
| $160.00 | NUB0537 |
| $177.59 | NUB0504 |
| $709.36 | NUB0545 |
| $109.31 | NUB0536 |
| $431.69 | NUB0542 |
| $384.45 | NUB0541 |
| $339.98 | NUB0540 |
| $256.25 | NUB0539 |
| $50.79 | NUB0534 |
| $47.74 | NUB0498 |
| $52.87 | NUB0515 |
| $140.12 | NUB0503 |
| $107.58 | NUB0535 |
| $57.49 | NUB0463 |
| $41.76 | NUB0514 |
| $39.69 | NUB0532 |
| $45.67 | NUB0533 |
| $37.67 | NUB0530 |
| $43.84 | NUB0531 |
