8 in Galvanized Nu-Bolt with I-Rod HT with Flats
Regular price
$65.84
Couldn't load pickup availability

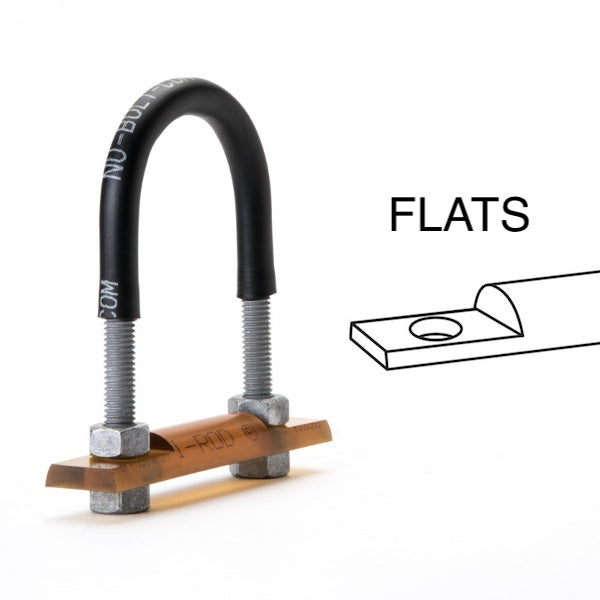

Nu-Bolt assembly for 8 inch pipe with I-Rod HT pipe support material machined with Flats and 4 nuts, shipped unassembled. (Imperial)
- 1 x HDG U-Bolt ASTM A36 5/8-11 stock with Polyshrink™
- 1 x I-Rod HT support: cut and drilled, ends machined with Flats
- 4 x HDG heavy hex nuts 5/8-11

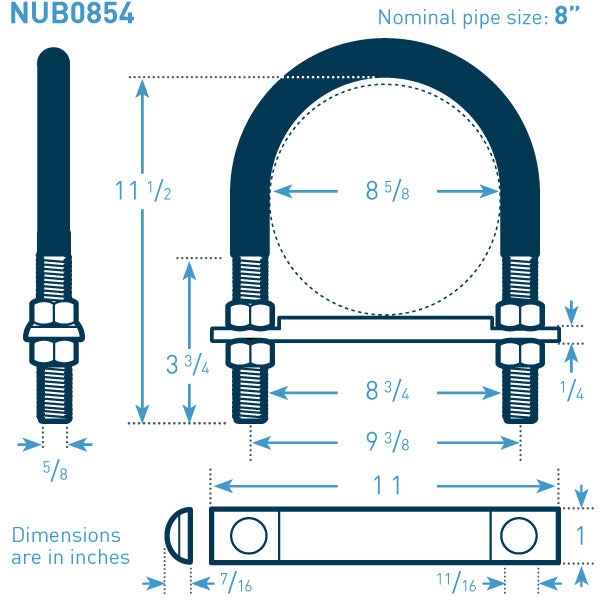

U-Bolt Size: 8 in NPS x 0.625 in bolt stock
Bolt Stock (in): 5/8 inch (0.625)
Bolt Coating: Hot Dip Galvanized
Polyshrink: Standard
Gripping?: Gripping
I-Rod material: I-Rod HT (amber)
Temp: up to 340°F (171°C)
I-Rod Size: 1.00 in dia x 0.4375 in height
I-Rod length (in): 11.0
Price | SKU |
---|---|
$371.43 | NUB0863 |
$256.28 | NUB0860 |
$393.68 | NUB0729 |
$286.22 | NUB0861 |
$176.07 | NUB0858 |
$65.84 | NUB0854 |
$325.20 | NUB0862 |
$44.50 | NUB0851 |
$29.87 | NUB0848 |
$209.90 | NUB0859 |
$158.60 | NUB0857 |
$148.25 | NUB0856 |
$121.73 | NUB0855 |
$25.47 | NUB0847 |
$17.59 | NUB0844 |
$60.28 | NUB0853 |
$25.29 | NUB0846 |
$52.64 | NUB0852 |
$36.59 | NUB0849 |
$21.09 | NUB0845 |
$21.09 | NUB0843 |
$16.71 | NUB0842 |
$17.36 | NUB0725 |
$21.09 | NUB0841 |
$39.33 | NUB0850 |
