3/4 in Galvanized Nu-Bolt XL HT, Non-Gripping with I-Rod HT (1/4 Stock )
3/4 in Galvanized Nu-Bolt XL HT, Non-Gripping with I-Rod HT (1/4 Stock )
In stock
Regular price
$32.84
Couldn't load pickup availability

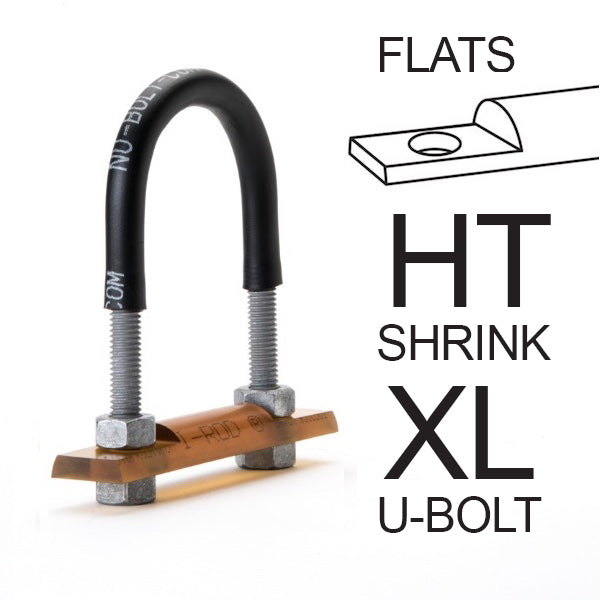

Nu-Bolt XL HT (high-temp) assembly, Non-Gripping for 3/4 inch pipe with I-Rod HT pipe support material machined with Flats and 4 nuts, shipped unassembled.
- 1 x Hot Dip Galvanized XL U-Bolt ASTM A36 1/4-20 stock with HT Polyshrink™
- 1 x I-Rod HT support: cut and drilled, ends machined with Flats
- 4 x HDG heavy hex nuts 1/4-20
*Non-Gripping: XL U-Bolts are manufactured larger to provide a 1/4 inch gap all the way around the pipe.

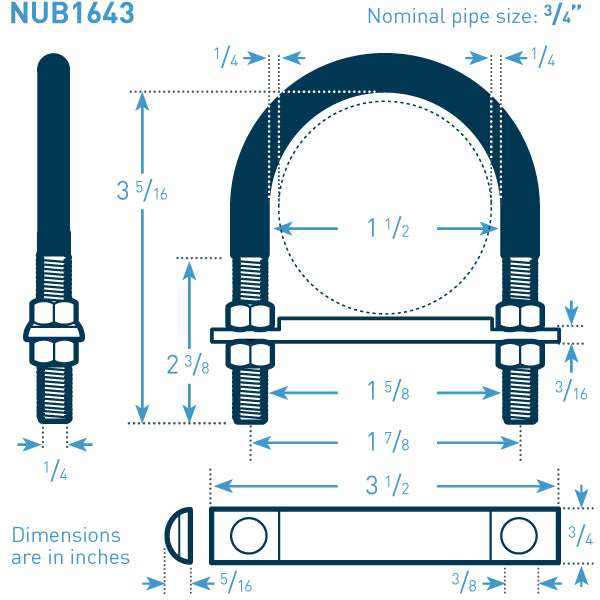

U-Bolt Size: 0.75 in NPS x 0.25 in bolt stock XL (0.25 in space around pipe)
Bolt Stock (in):
Bolt Coating: Hot Dip Galvanized
Polyshrink: High Temp (HT)
Gripping?: Non-Gripping
I-Rod material: I-Rod HT (amber)
Temp:
I-Rod Size: 0.75 in dia x 0.3125 in height
I-Rod length (in): 3.5
