20 em Nu-Bolt inoxidável
Preço normal
R$ 3.736,00
inc. VAT
Retira disponível em 13813 FM 529
Normalmente pronto entre 2 e 4 dias

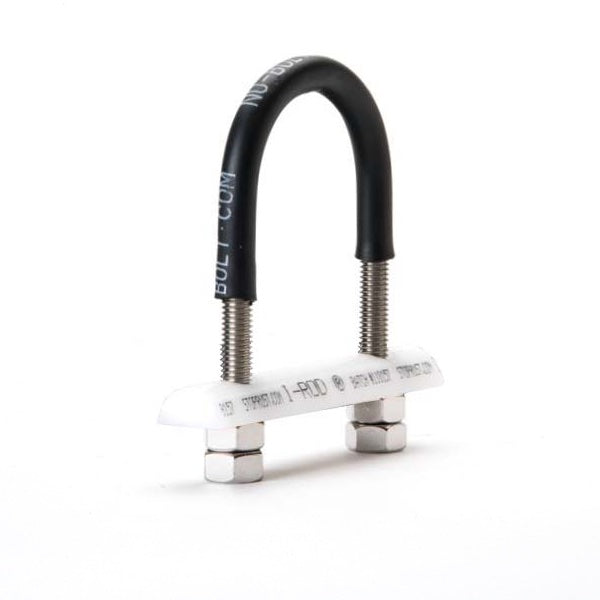

Conjunto Nu-Bolt para tubo de 20 polegadas com material de suporte de tubo I-Rod e 4 porcas, enviado desmontado.
1 x 316SS U Bolt ASTM A276, A555 ou AISI (316/316L) 1-8 estoque com Polyshrink ™
1 x suporte I Rod meio redondo: cortado e perfurado
4 x porcas sextavadas pesadas 316SS 1-8

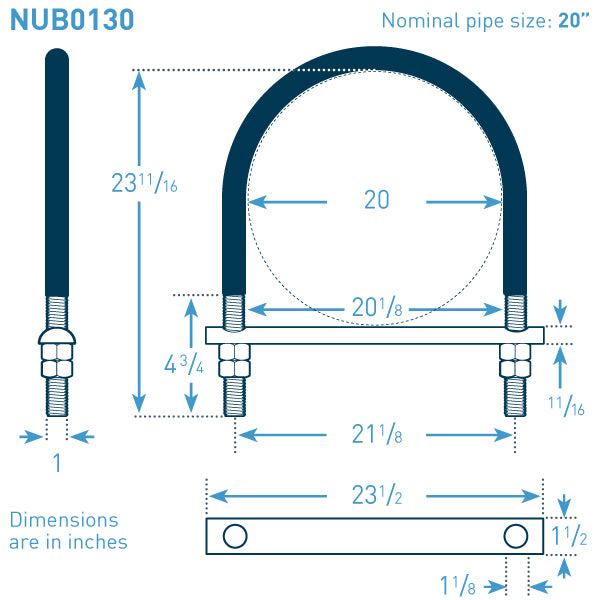

U-Bolt Size: 20 em NPS x 1 em estoque de parafuso
Bolt Stock (in): 1 polegada (1,00)
Bolt Coating: Aço inoxidável 316
Polyshrink: Padrão
Gripping?: Agarrando
I-Rod material: I-Rod (branco)
Temp: -166 a 181°F (-110 a 83°C)
I-Rod Size: 1,50 pol. de diâmetro x 0,6875 pol. de altura
I-Rod length (in): 23.5
| Bolt stock | Hole diameter in | Inside gap bolt | Inside gap shrink in | I rod diameter | I rod height in | I rod length in2 | Nominal pipe diameter | Nuts included | Overall height in | Overal width in | Thread length | U bolt height | Price | SKU |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.25 | 0.375 | 1.375 | 1.25 | 0.75 | 0.3125 | 3.0 | N/A | 4.0 | 3.69 | 2.0 | 2.375 | 3.4375 | R$ 169,00 | NUB0114 |
| 0.25 | 0.375 | 1.125 | 1.0 | 0.75 | 0.3125 | 3.0 | N/A | 4.0 | 3.75 | 1.56 | 2.375 | 3.3125 | R$ 159,00 | NUB0123 |
| 0.25 | 0.375 | 0.9375 | 0.8125 | 0.75 | 0.3125 | 2.5 | N/A | 4.0 | 3.5 | 1.38 | 2.375 | 3.25 | R$ 139,00 | NUB0113 |
| 0.375 | 0.5 | 2.4375 | 2.3125 | 1.0 | 0.4375 | 4.5 | N/A | 4.0 | 4.81 | 3.31 | 2.5 | 4.5 | R$ 237,00 | NUB0018 |
| 0.375 | 0.5 | 1.375 | 1.25 | 1.0 | 0.4375 | 3.0 | N/A | 4.0 | 3.75 | 2.25 | 2.375 | 3.4375 | R$ 204,00 | NUB0038 |
| 0.375 | 0.5 | 2.0 | 1.875 | 1.0 | 0.4375 | 4.0 | N/A | 4.0 | 4.31 | 2.88 | 2.5 | 4.0 | R$ 221,00 | NUB0116 |
| 0.375 | 0.5 | 1.6875 | 1.5625 | 1.0 | 0.4375 | 3.5 | N/A | 4.0 | 4.19 | 2.44 | 2.5 | 3.75 | R$ 205,00 | NUB0039 |
| 0.375 | 0.5 | 1.125 | 1.0 | 1.0 | 0.4375 | 3.0 | N/A | 4.0 | 3.75 | 1.75 | 2.375 | 3.3125 | R$ 195,00 | NUB0610 |
| 0.375 | 0.5 | 0.9375 | 0.8125 | 1.0 | 0.4375 | 2.5 | N/A | 4.0 | 3.5 | 1.63 | 2.375 | 3.25 | R$ 191,00 | NUB0609 |
| 0.5 | 0.625 | 4.5625 | 4.4375 | 1.0 | 0.4375 | 7.0 | N/A | 4.0 | 7.25 | 5.69 | 3.0 | 6.8125 | R$ 360,00 | NUB0120 |
| 0.5 | 0.625 | 3.5625 | 3.4375 | 1.0 | 0.4375 | 6.0 | N/A | 4.0 | 6.25 | 4.69 | 3.4375 | 3.0 | R$ 359,00 | NUB0119 |
| 0.5 | 0.625 | 5.625 | 5.5 | 1.0 | 0.4375 | 8.0 | N/A | 4.0 | 8.25 | 6.69 | 3.0 | 7.8125 | R$ 564,00 | NUB0277 |
| 0.5 | 0.625 | 2.9375 | 2.8125 | 1.0 | 0.4375 | 5.0 | N/A | 4.0 | 6.25 | 4.19 | 3.0 | 5.25 | R$ 337,00 | NUB0442 |
| 0.625 | 0.6875 | 8.875 | 8.625 | 1.0 | 0.4375 | 11.0 | N/A | 4.0 | 12.06 | 10.13 | 3.75 | 11.5 | R$ 1.161,00 | NUB0125 |
| 0.625 | 0.6875 | 6.875 | 6.625 | 1.0 | 0.4375 | 9.0 | N/A | 4.0 | 10.06 | 8.13 | 3.75 | 9.5 | R$ 1.134,00 | NUB0121 |
| 0.75 | 0.875 | 10.875 | 10.75 | 1.5 | 0.6875 | 13.5 | N/A | 4.0 | 14.5 | 12.5 | 4.0 | 13.8125 | R$ 1.746,00 | NUB0127 |
| 0.875 | 1.0 | 16.125 | 16.0 | 1.5 | 0.6875 | 19.0 | N/A | 4.0 | 20.13 | 18.0 | 4.125 | 19.3125 | R$ 2.182,00 | NUB0129 |
| 0.875 | 1.0 | 12.875 | 12.75 | 1.5 | 0.6875 | 16.0 | N/A | 4.0 | 16.88 | 14.75 | 4.125 | 16.0625 | R$ 1.761,00 | NUB0128 |
| 0.875 | 1.0 | 14.125 | 14.0 | 1.5 | 0.6875 | 17.0 | N/A | 4.0 | 18.13 | 16.0 | 4.125 | 17.3125 | R$ 2.030,00 | NUB0390 |
| 1.0 | 1.125 | 30.125 | 30.0 | 1.5 | 0.6875 | 33.5 | N/A | 4.0 | 34.63 | 32.25 | 4.75 | 33.6875 | R$ 5.431,00 | NUB0616 |
| 1.0 | 1.125 | 18.125 | 18.0 | 1.5 | 0.6875 | 21.5 | N/A | 4.0 | 22.63 | 20.25 | 4.75 | 21.6875 | R$ 3.006,00 | NUB0232 |
| 1.0 | 1.125 | 20.125 | 20.0 | 1.5 | 0.6875 | 23.5 | N/A | 4.0 | 24.63 | 22.25 | 4.75 | 23.6875 | R$ 3.736,00 | NUB0130 |
| 1.0 | 1.125 | 36.125 | 36.0 | 1.5 | 0.6875 | 39.5 | N/A | 4.0 | 40.63 | 38.25 | 4.75 | 39.6875 | R$ 5.567,00 | NUB0617 |
| 1.0 | 1.125 | 24.125 | 24.0 | 1.5 | 0.6875 | 27.5 | N/A | 4.0 | 28.63 | 26.25 | 4.75 | 27.6875 | R$ 4.272,00 | NUB0131 |
