1/2 in Stainless Nu-Bolt with Flats (1/4 Stock )

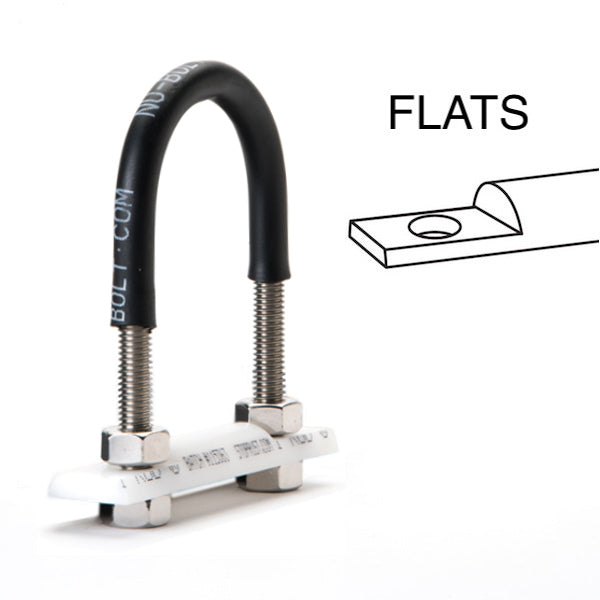

316 SS Nu-Bolt assembly for 1/2 inch pipe with I-Rod pipe support material machined with Flats and 4 nuts, shipped unassembled. (Imperial)
- 1 x 316 SS U-Bolt ASTM A276, A555 or AISI (316/316L) 1/4-20 stock with Polyshrink™
- 1 x I-Rod support: cut and drilled, ends machined with Flats
- 4 x 316 SS heavy hex nuts 1/4-20

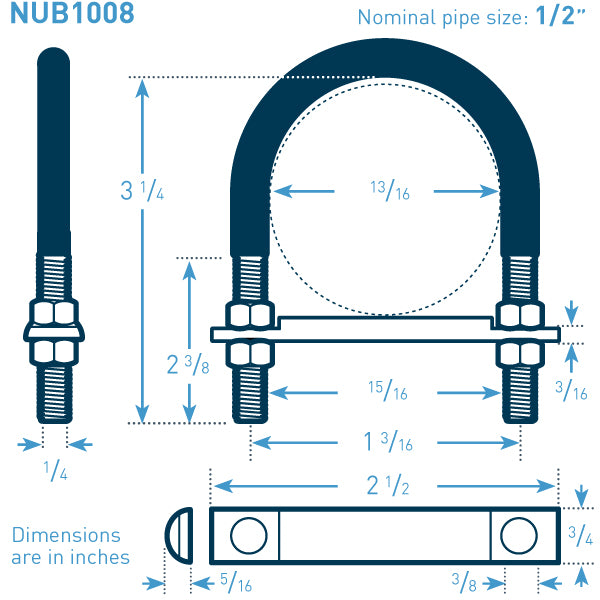

U-Bolt Size: 0.50 in NPS x 0.25 in bolt stock XL (0.25 in space around pipe)

Bolt Stock (in): 1/4 inch (0.25)

Bolt Coating: 316 Stainless Steel

Polyshrink: Standard

Gripping?: Gripping

I-Rod material: I-Rod (white)

Temp: -166 to 181°F (-110 to 83°C)

I-Rod Size: 0.75 in dia x 0.3125 in height

I-Rod length (in): 3.0
