6 in Stainless Nu-Bolt with Flats

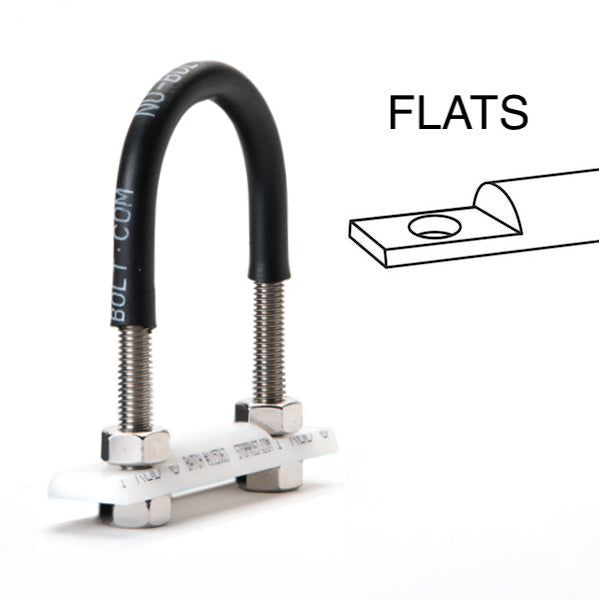

316 SS Nu-Bolt assembly for 6 inch pipe with I-Rod pipe support material machined with Flats and 4 nuts, shipped unassembled. (Imperial)
- 1 x 316 SS U-Bolt ASTM A276, A555 or AISI (316/316L) 5/8-11 stock with Polyshrink™
- 1 x I-Rod support: cut and drilled, ends machined with Flats
- 4 x 316 SS heavy hex nuts 5/8-11

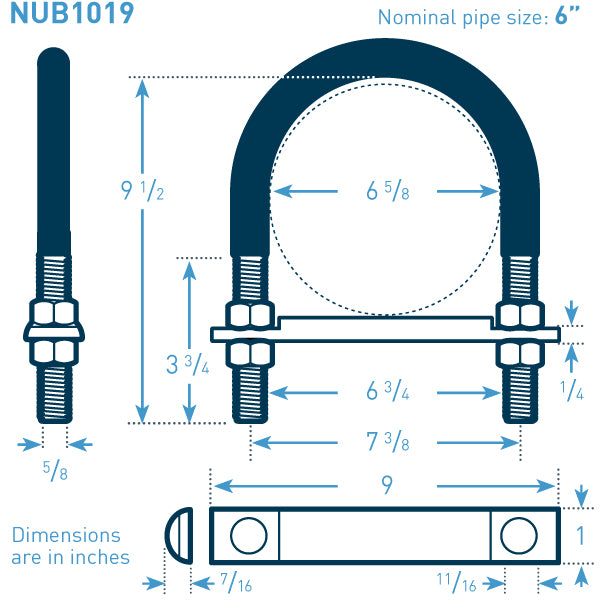

U-Bolt Size: 6 in NPS x 0.625 in bolt stock

Bolt Stock (in): 5/8 inch (0.625)

Bolt Coating: 316 Stainless Steel

Polyshrink: Standard

Gripping?: Gripping

I-Rod material: I-Rod (white)

Temp: -166 to 181°F (-110 to 83°C)

I-Rod Size: 1.00 in dia x 0.4375 in height

I-Rod length (in): 9.0
