3 in Stainless Nu-Bolt
Regular price
$31.51
Couldn't load pickup availability

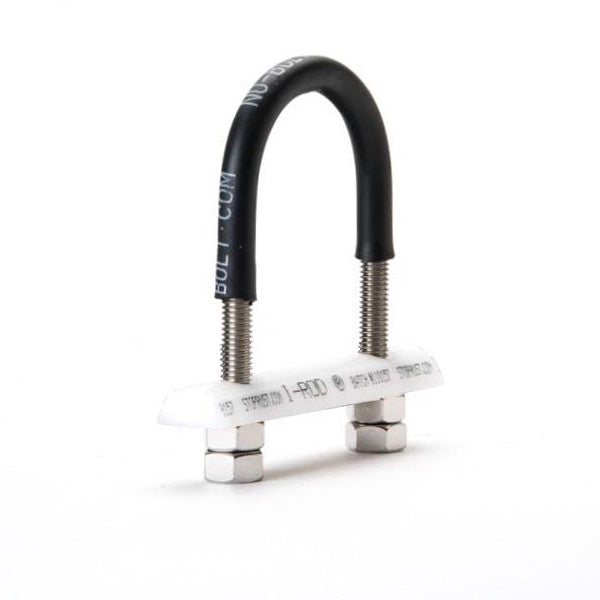

316SS Nu-Bolt assembly for 3 inch pipe with I-Rod pipe support material and 4 nuts, shipped unassembled.
- 1 x 316SS U-Bolt ASTM A276, A555 or AISI (316/316L) 1/2-13 stock with Polyshrink@
- 1 x Half-round I-Rod support: cut and drilled
- 4 x 316SS heavy hex nuts 1/2-13

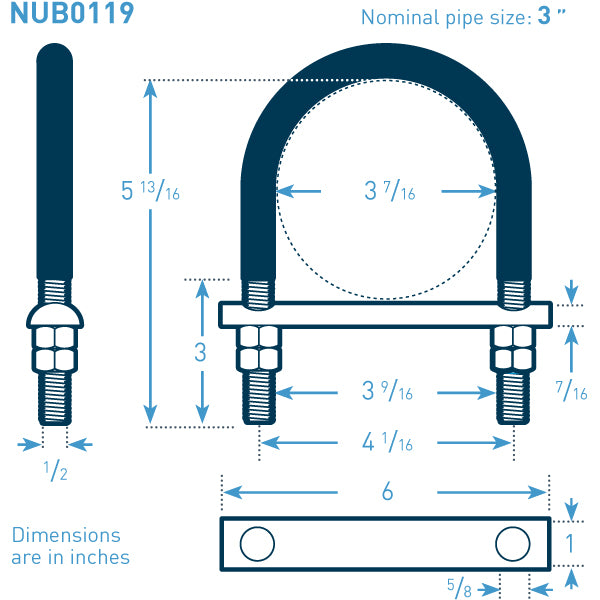

U-Bolt Size: 3 in NPS x 0.5 in bolt stock
Bolt Stock (in): 1/2 inch (0.50)
Bolt Coating: 316 Stainless Steel
Polyshrink: Standard
Gripping?: Gripping
I-Rod material: I-Rod (white)
Temp: -166 to 181°F (-110 to 83°C)
I-Rod Size: 1.00 in dia x 0.4375 in height
I-Rod length (in): 6.0
| Price | SKU |
|---|---|
| $20.76 | NUB0018 |
| $17.92 | NUB0038 |
| $19.34 | NUB0116 |
| $31.59 | NUB0120 |
| $14.85 | NUB0114 |
| $31.51 | NUB0119 |
| $477.17 | NUB0616 |
| $264.11 | NUB0232 |
| $328.24 | NUB0130 |
| $153.38 | NUB0127 |
| $101.94 | NUB0125 |
| $489.10 | NUB0617 |
| $375.35 | NUB0131 |
| $49.53 | NUB0277 |
| $191.64 | NUB0129 |
| $154.72 | NUB0128 |
| $178.30 | NUB0390 |
| $17.99 | NUB0039 |
| $99.60 | NUB0121 |
| $29.58 | NUB0442 |
| $17.10 | NUB0610 |
| $13.91 | NUB0123 |
| $16.75 | NUB0609 |
| $12.20 | NUB0113 |
