36 in Galvanized Nu-Bolt with Flats
Regular price
$218.21
Couldn't load pickup availability

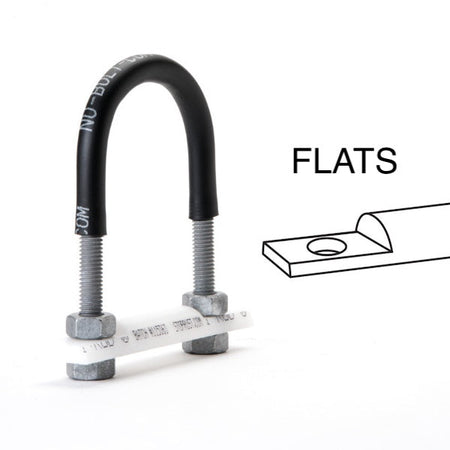

Nu-Bolt assembly for 36 inch pipe with I-Rod pipe support material machined with Flats and 4 nuts, shipped unassembled.
- 1 x Hot Dip Galvanized U-Bolt ASTM A36 1-8 stock with Polyshrink™
- 1 x I-Rod support: cut and drilled, ends machined with Flats
- 4 x HDG heavy hex nuts 1-8

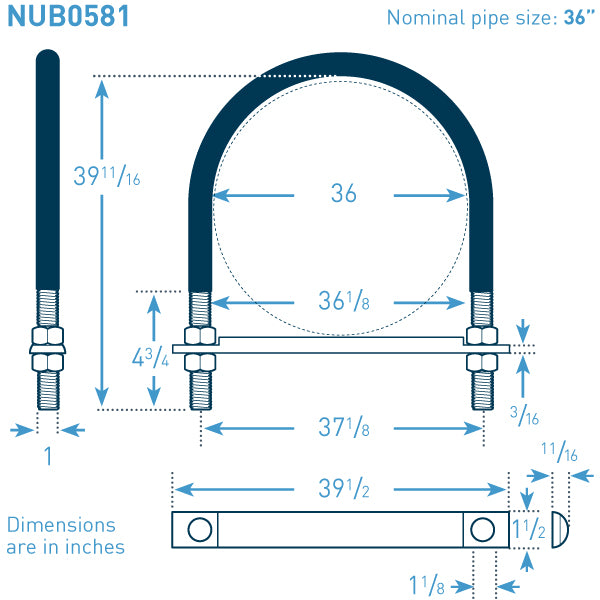

U-Bolt Size: 36 in NPS x 1 in bolt stock
Bolt Stock (in): 1 inch (1.00)
Bolt Coating: Hot Dip Galvanized
Polyshrink: Standard
Gripping?: Gripping
I-Rod material: I-Rod (white)
Temp: -166 to 181°F (-110 to 83°C)
I-Rod Size: 1.50 in dia x 0.6875 in height
I-Rod length (in): 39.5
| Price | SKU |
|---|---|
| $12.27 | NUB0567 |
| $12.56 | NUB0568 |
| $124.54 | NUB0579 |
| $89.21 | NUB0561 |
| $65.94 | NUB0576 |
| $187.15 | NUB0580 |
| $52.09 | NUB0575 |
| $103.55 | NUB0578 |
| $18.90 | NUB0572 |
| $17.00 | NUB0570 |
| $29.38 | NUB0560 |
| $218.21 | NUB0581 |
| $240.79 | NUB0722 |
| $26.67 | NUB0573 |
| $164.92 | NUB0562 |
| $71.61 | NUB0577 |
| $33.57 | NUB0574 |
| $18.35 | NUB0719 |
| $13.59 | NUB0569 |
| $13.19 | NUB0592 |
| $10.78 | NUB0566 |
| $10.52 | NUB0564 |
| $12.13 | NUB0715 |
| $12.17 | NUB0565 |
| $10.27 | NUB0563 |
| $17.27 | NUB0571 |
