30 in Galvanized Nu-Bolt XL, Non-Gripping
Regular price
$243.05
Couldn't load pickup availability

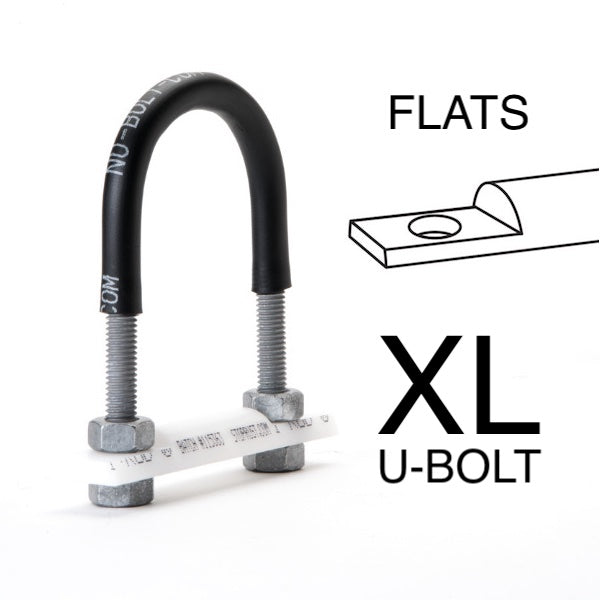

Nu-Bolt XL assembly, Non-Gripping for 30 inch pipe with I-Rod pipe support material machined with Flats and 4 nuts, shipped unassembled. (Imperial)
- 1 x Hot Dip Galvanized XL U-Bolt ASTM A36 1-8 stock with Polyshrink™
- 1 x I-Rod support: cut and drilled, ends machined with Flats
- 4 x HDG heavy hex nuts 1-8
*Non-Gripping: XL U-Bolts are manufactured larger to provide a 1/4 inch gap all the way around the pipe.

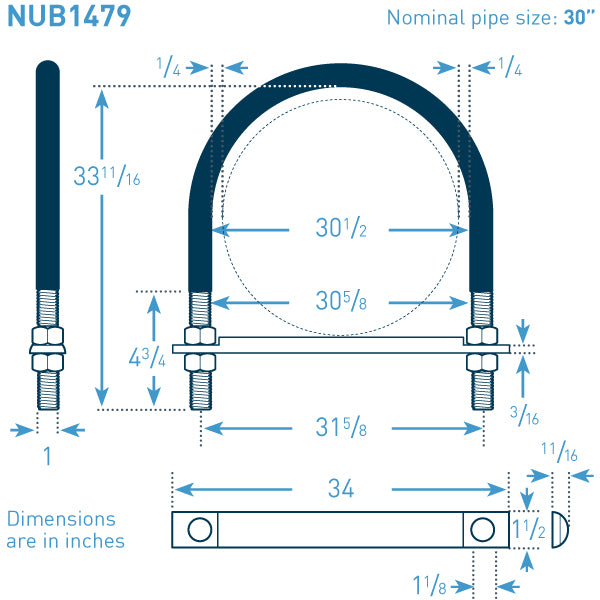

U-Bolt Size: 30 in NPS x 1 in bolt stock XL (0.25 in space around pipe)
Bolt Stock (in): 1 inch (1.00)
Bolt Coating: Hot Dip Galvanized
Polyshrink: Standard
Gripping?: Non-Gripping
I-Rod material: I-Rod (white)
Temp: -166 to 181°F (-110 to 83°C)
I-Rod Size: 1.50 in dia x 0.6875 in height
I-Rod length (in): 34.0
Price | SKU |
---|---|
$21.19 | NUB1467 |
$19.05 | NUB1466 |
$15.26 | NUB1464 |
$14.29 | NUB1463 |
$150.98 | NUB1476 |
$102.92 | NUB1474 |
$98.43 | NUB1473 |
$273.64 | NUB1480 |
$238.34 | NUB1478 |
$167.75 | NUB1477 |
$41.83 | NUB1470 |
$243.05 | NUB1479 |
$134.33 | NUB1475 |
$22.31 | NUB1465 |
$83.56 | NUB1472 |
$66.64 | NUB1471 |
$34.69 | NUB1469 |
$18.61 | NUB1461 |
$29.30 | NUB1468 |
$18.24 | NUB1459 |
$14.90 | NUB1462 |
$14.81 | NUB1460 |
$18.05 | NUB1458 |
