5 in Stainless Nu-Bolt with Flats
Regular price
$51.68
Couldn't load pickup availability

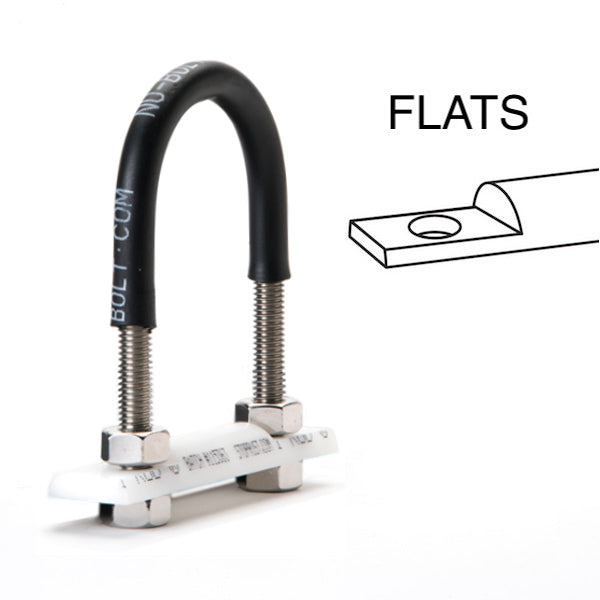

316 SS Nu-Bolt assembly for 5 inch pipe with I-Rod pipe support material machined with Flats and 4 nuts, shipped unassembled. (Imperial)
- 1 x 316 SS U-Bolt ASTM A276, A555 or AISI (316/316L) 1/2-13 stock with Polyshrink™
- 1 x I-Rod support: cut and drilled, ends machined with Flats
- 4 x 316 SS heavy hex nuts 1/2-13

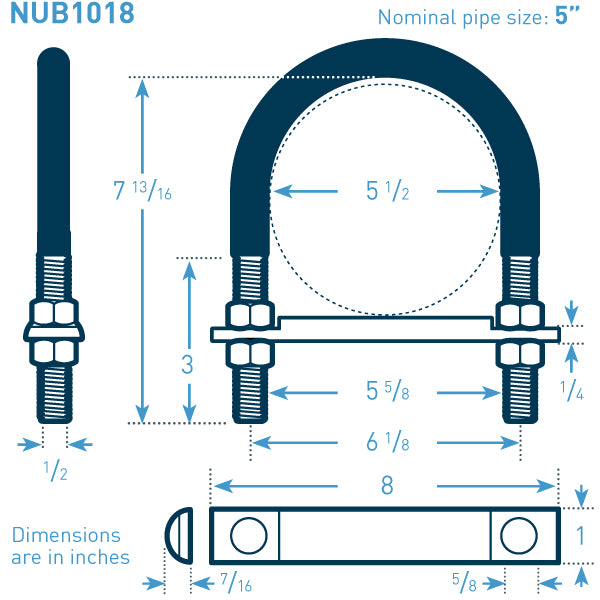

U-Bolt Size: 5 in NPS x 0.5 in bolt stock
Bolt Stock (in): 1/2 inch (0.50)
Bolt Coating: 316 Stainless Steel
Polyshrink: Standard
Gripping?: Non-Gripping
I-Rod material: I-Rod (white)
Temp: -166 to 181°F (-110 to 83°C)
I-Rod Size: 1.00 in dia x 0.4375 in height
I-Rod length (in): 8.0
Price | SKU |
---|---|
$516.33 | NUB1025 |
$160.45 | NUB1022 |
$158.19 | NUB1021 |
$238.71 | NUB1024 |
$184.12 | NUB1023 |
$51.68 | NUB1018 |
$33.32 | NUB0870 |
$337.42 | NUB1026 |
$20.40 | NUB1013 |
$17.88 | NUB1012 |
$106.31 | NUB1020 |
$101.80 | NUB1019 |
$16.03 | NUB1010 |
$22.08 | NUB1014 |
$30.80 | NUB1015 |
$15.01 | NUB1009 |
$19.18 | NUB0868 |
$17.52 | NUB0736 |
$18.36 | NUB0737 |
$93.41 | NUB1008 |
$33.10 | NUB0869 |
