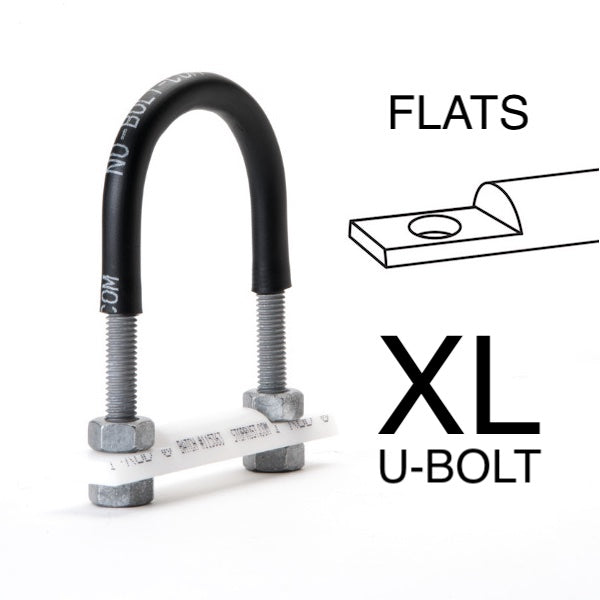

Nu-Bolt XL assembly, Non-Gripping for 3/4 inch pipe with I-Rod pipe support material machined with Flats and 4 nuts, shipped unassembled. (Imperial)
- 1 x Hot Dip Galvanized XL U-Bolt ASTM A36 3/8-16 stock with Polyshrink™
- 1 x I-Rod support: cut and drilled, ends machined with Flats
- 4 x HDG heavy hex nuts 3/8-16
*Non-Gripping: XL U-Bolts are manufactured larger to provide a 1/4 inch gap all the way around the pipe.
U-Bolt Size: 0.75 in NPS x 0.375 in bolt stock XL (0.25 in space around pipe)
Bolt Stock (in): 3/8 inch (0.375)
Bolt Coating: Hot Dip Galvanized
Polyshrink: Standard
Gripping?: Non-Gripping
I-Rod material: I-Rod (white)
Temp: -166 to 181°F (-110 to 83°C)
I-Rod Size: 1.00 in dia x 0.4375 in height
I-Rod length (in): 3.5

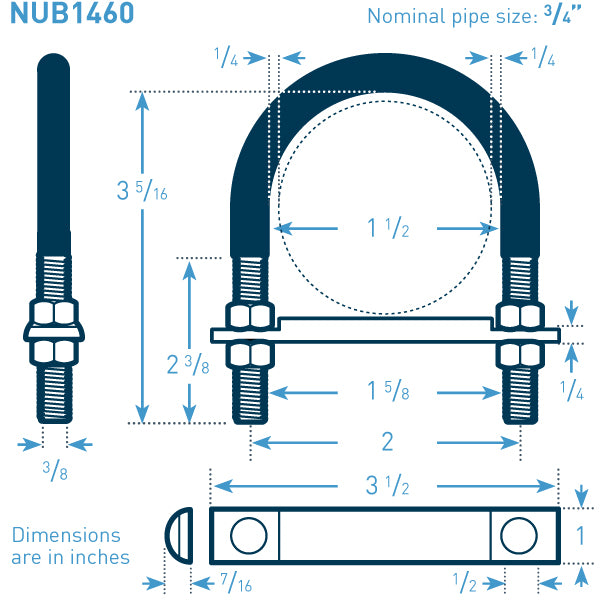

Bolt stock | Hole diameter in | Inside gap bolt | Inside gap shrink in | I rod diameter | I rod height in | I rod length in2 | Nominal pipe diameter | Nuts included | Overall height in | Overal width in | Thread length | U bolt height | I rod length in | Price | SKU |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.25 | 0.375 | 1.875 | 1.75 | 0.75 | 0.3125 | 3.5 | 1 in | 4.0 | 3.69 | 2.0 | 2.375 | 3.4375 | N/A | $18.61 | NUB1461 |
0.25 | 0.375 | 1.625 | 1.5 | 0.75 | 0.3125 | 3.5 | 0.75 in | 4.0 | 3.75 | 1.56 | 2.375 | 3.3125 | N/A | $18.24 | NUB1459 |
0.25 | 0.375 | 1.4375 | 1.3125 | 0.75 | 0.3125 | 3.0 | 0.50 in | 4.0 | 3.5 | 1.38 | 2.375 | 3.25 | N/A | $18.05 | NUB1458 |
0.375 | 0.5 | 2.9375 | 2.8125 | 1.0 | 0.4375 | 5.0 | 2 in | 4.0 | 4.81 | 3.31 | 2.5 | 4.5 | N/A | $15.26 | NUB1464 |
0.375 | 0.5 | 2.5 | 2.375 | 1.0 | 0.4375 | 4.5 | 1.50 in | 4.0 | 4.31 | 2.88 | 2.5 | 4.0 | N/A | $14.29 | NUB1463 |
0.375 | 0.5 | 1.875 | 1.75 | 1.0 | 0.4375 | 3.5 | 1 in | 4.0 | 3.75 | 2.25 | 2.375 | 3.4375 | N/A | $14.90 | NUB1462 |
0.375 | 0.5 | 1.625 | 1.5 | 1.0 | 0.4375 | 3.5 | 0.75 in | 4.0 | 3.75 | 1.75 | 2.375 | 3.3125 | N/A | $14.81 | NUB1460 |
0.5 | 0.625 | 5.0625 | 4.9375 | 1.0 | 0.4375 | 7.5 | 4 in | 4.0 | 7.25 | 5.69 | 3.0 | 6.8125 | N/A | $21.19 | NUB1467 |
0.5 | 0.625 | 4.0625 | 3.9375 | 1.0 | 0.4375 | 6.5 | 3 in | 4.0 | 6.25 | 4.69 | 3.0 | 5.8125 | N/A | $19.05 | NUB1466 |
0.5 | 0.625 | 3.4375 | 3.3125 | 1.0 | 0.4375 | 5.5 | 2.50 in | 4.0 | 6.25 | 4.19 | 3.0 | 5.25 | 5.5 | $22.31 | NUB1465 |
0.5 | 0.625 | 6.125 | 6.0 | 1.0 | 0.4375 | 8.5 | 5 in | 4.0 | 8.25 | 6.69 | 3.0 | 7.8125 | N/A | $29.30 | NUB1468 |
0.625 | 0.6875 | 7.25 | 7.125 | 1.0 | 0.4375 | 9.5 | 6 in | 4.0 | 10.06 | 8.13 | 3.75 | 9.5 | N/A | $34.69 | NUB1469 |
0.625 | 0.6875 | 9.25 | 9.125 | 1.0 | 0.4375 | 11.5 | 8 in | 4.0 | 12.06 | 10.13 | 3.75 | 11.5 | N/A | $41.83 | NUB1470 |
0.75 | 0.875 | 11.375 | 11.25 | 1.5 | 0.6875 | 14.0 | 10 in | 4.0 | 14.5 | 12.5 | 4.0 | 13.8125 | N/A | $66.64 | NUB1471 |
0.875 | 1.0 | 16.625 | 16.5 | 1.5 | 0.6875 | 19.5 | 16 in | 4.0 | 20.13 | 18.0 | 4.125 | 19.3125 | N/A | $102.92 | NUB1474 |
0.875 | 1.0 | 14.625 | 14.5 | 1.5 | 0.6875 | 17.5 | 14 in | 4.0 | 18.13 | 16.0 | 4.125 | 17.3125 | N/A | $98.43 | NUB1473 |
0.875 | 1.0 | 13.375 | 13.25 | 1.5 | 0.6875 | 16.5 | 12 in | 4.0 | 16.88 | 14.75 | 4.125 | 16.0625 | N/A | $83.56 | NUB1472 |
1.0 | 1.125 | 20.625 | 20.5 | 1.5 | 0.6875 | 24.0 | 20 in | 4.0 | 24.63 | 22.25 | 4.75 | 23.6875 | N/A | $150.98 | NUB1476 |
1.0 | 1.125 | 36.625 | 36.5 | 1.5 | 0.6875 | 40.0 | 36 in | 4.0 | 40.63 | 38.25 | 4.75 | 39.6875 | N/A | $273.64 | NUB1480 |
1.0 | 1.125 | 28.625 | 28.5 | 1.5 | 0.6875 | 32.0 | 28 in | 4.0 | 32.63 | 30.25 | 4.75 | 31.6875 | N/A | $238.34 | NUB1478 |
1.0 | 1.125 | 24.625 | 24.5 | 1.5 | 0.6875 | 28.0 | 24 in | 4.0 | 28.63 | 26.25 | 4.75 | 27.6875 | N/A | $167.75 | NUB1477 |
1.0 | 1.125 | 30.625 | 30.5 | 1.5 | 0.6875 | 34.0 | 30 in | 4.0 | 34.63 | 32.25 | 4.75 | 33.6875 | N/A | $243.05 | NUB1479 |
1.0 | 1.125 | 18.625 | 18.5 | 1.5 | 0.6875 | 22.0 | 18 in | 4.0 | 22.63 | 20.25 | 4.75 | 21.6875 | N/A | $134.33 | NUB1475 |
